BPJ-3-AL

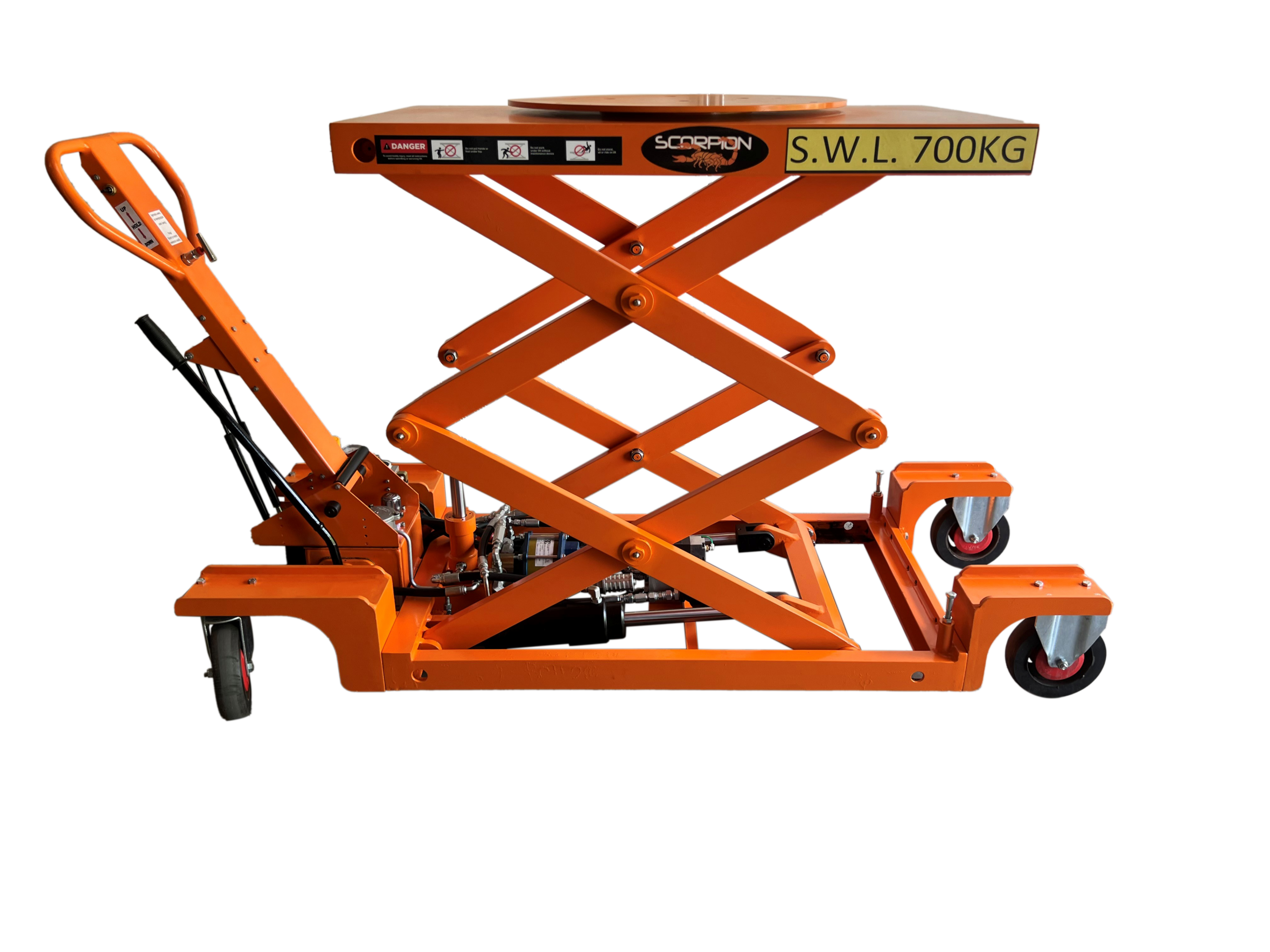

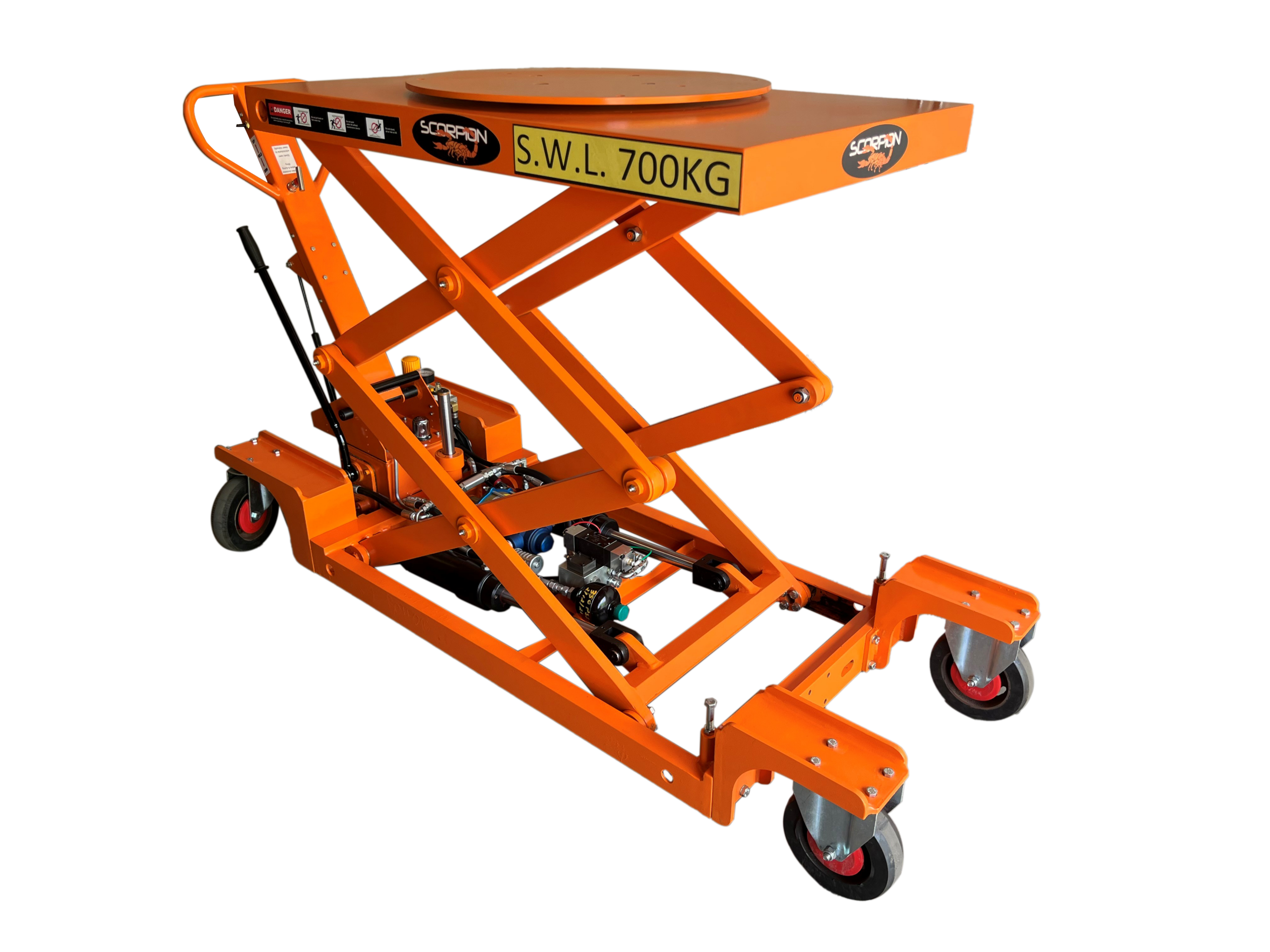

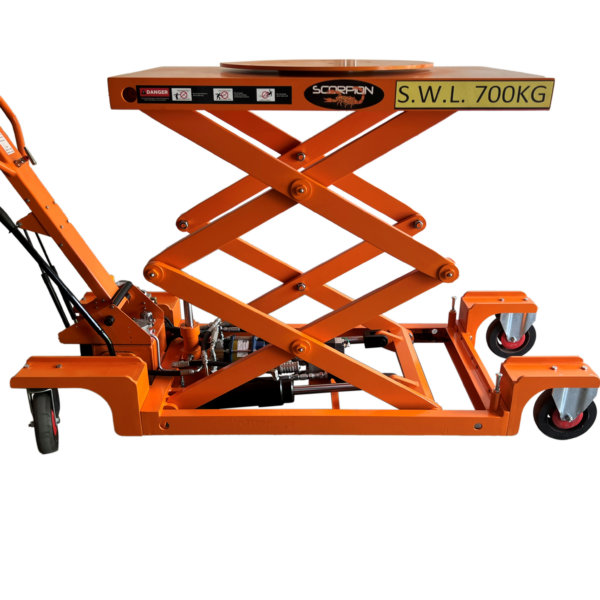

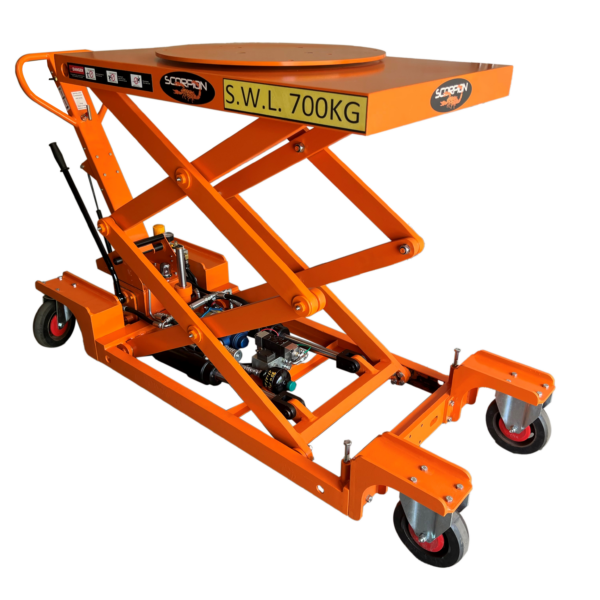

The BPJ-3-AL is the mid-tier option Belly Pan Jack from the BPJ series offered by Scorpion Jacks. With a closed height of 305mm and an extended height of 1210mm, and a maximum rated capacity of 700kg.         The BPJ-3-AL offers the same functionality of the BPJ-3, but add…s an air/hydraulic lift lower module, with the same proven SC pumps at the heart of these jacks. The unit is raised by simply activating the Clippard switch mounted in the handle, and then lowered the same way, meaning this BPJ unit is a double acting, (power up/power down) unit. All the manual options remain though, so should the air source which powers this jack be lost for whatever reason, the unit can still be operated using the handpump, located next to the handle, and is lowered by simply cracking the lower valve, located on the handpump. This jack is still pushed or pulled around manually. With a rated capacity of 700kg, and featuring a rotating turntable, that incorporates pre-drilled mounting holes for Scorpion, or client provided attachments, the Scorpion Jacks BPJ-3-AL Belly Pan is a robust and reliable mid-spec Belly Pan Hoist. The BPJ-3 series of jacks are also designed to meet a minimum 2:1 safety factor on their nominated SWL. The simplicity of its design allows for easy maintenance and repair when and if needed, and best of all, this mid spec unit can be upgraded to the -ALD variant, whilst still maintaining its manual functionality if needed. A truly flexible, safe and value for money proposition for operators, with medium size fleets, or who want the option to raise and lower the load under power.
BPJ-3-ALBPJ-3-AL
ModelBPJ-3-AL
Capacity - Kgs (LBs)700 (1543)
Closed Height mm (inches)305 (12)
Stroke mm (inches)905 (35.5/8)
Table Dimensions mm (inches)1153 x 700 (45.3/8 x 27.1/2)
Length mm (inches)1820 (71.5/8)
Width mm (inches)700 (27.1/2)
Lift MethodAir/Hyd (or manual)
Movement MethodManual
