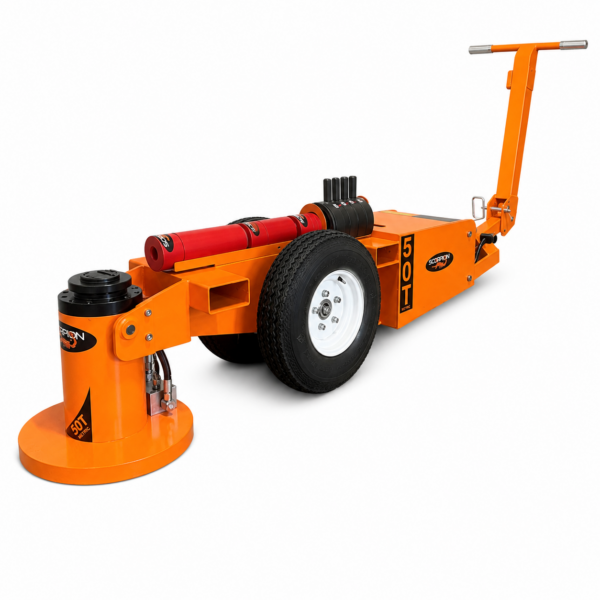

MEJ50-9

MEJ Series

Capacity – Metric Tonnes (Short Tonnes)
50 (55)
Closed Height mm (inches)
422 (16.58/)
Stroke mm (inches)
237 (9.3/8)
Extended Height with chocks mm (inches)
625 (25.5/8)

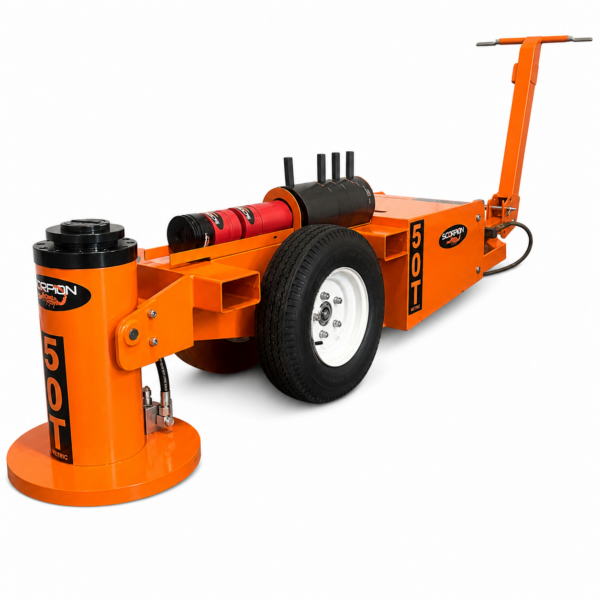

MEJ50-14

MEJ Series

Capacity – Metric Tonnes (Short Tonnes)
50 (55)
Closed Height mm (inches)
546 (21.1/2)
Stroke mm (inches)
350 (13.3/4)
Extended Height with chocks mm (inches)
876 (34.1/2)

MEJ50-18

Capacity – Metric Tonnes (Short Tonnes)
50 (55)
Closed Height mm (inches)
654 (25.3/4)
Stroke mm (inches)
457 (18)
Extended Height with chocks mm (inches)
1086 (42.3/4)

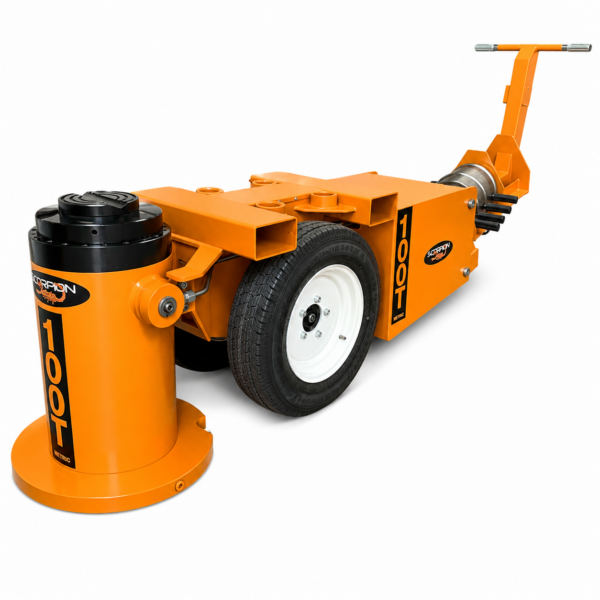

MLJ100-380

MLJ Series

Capacity – Metric Tonnes (Short Tonnes)
100 (110)
Closed Height mm (inches)
644 (25.38)
Stroke mm (inches)
381 (15)
Extended Height with chocks mm (inches)
1000 (39.3/8)

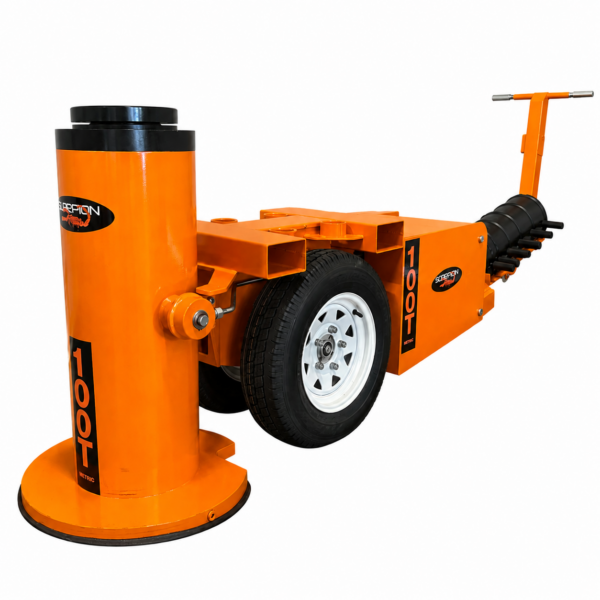

MLJ100-660

MLJ Series

Capacity – Metric Tonnes (Short Tonnes)
100 (110)
Closed Height mm (inches)
925 (36.7/16)
Stroke mm (inches)
660 (26)
Extended Height with chocks mm (inches)
1560 (61.7/16)

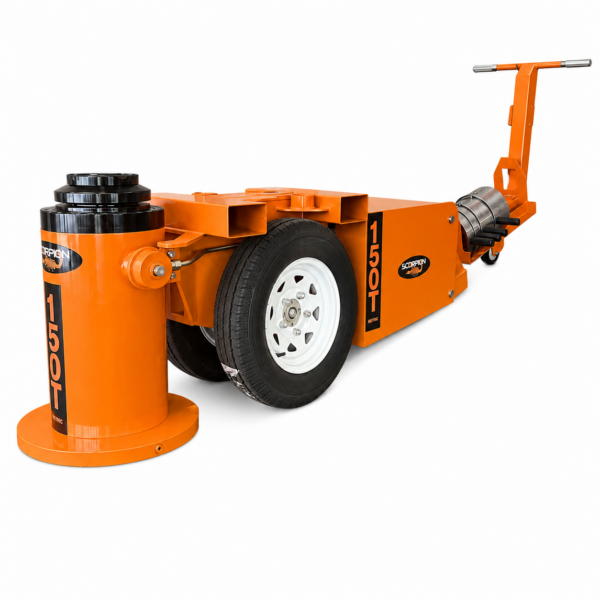

MLJ150-400

MLJ Series

Capacity – Metric Tonnes (Short Tonnes)
150 (165)
Closed Height mm (inches)
698 (27.1/2)
Stroke mm (inches)
400 (16)
Extended Height with chocks mm (inches)
1088 (42.7/8)

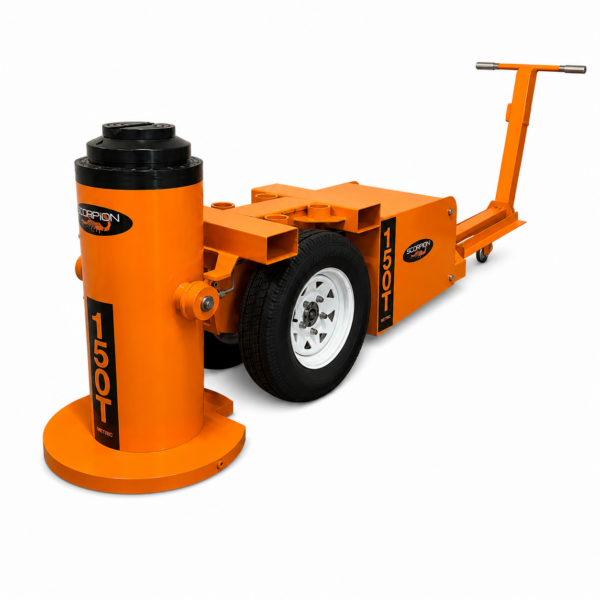

MLJ150-600

MLJ Series

Capacity – Metric Tonnes (Short Tonnes)
150 (165)
Closed Height mm (inches)
865 (34)
Stroke mm (inches)
600 (24)
Extended Height with chocks mm (inches)
1452 (57.1/8)

MLJ200-400

MLJ Series

Capacity – Metric Tonnes (Short Tonnes)
200 (220)
Closed Height mm (inches)
698 (27.1/2)
Stroke mm (inches)
400 (16)
Extended Height with chocks mm (inches)
1088 (42.7/8)

MLJ200-600

MLJ Series

Capacity – Metric Tonnes (Short Tonnes)
200 (220)
Closed Height mm (inches)
865 (34)
Stroke mm (inches)
600 (24)
Extended Height with chocks mm (inches)
1452 (57.1/8)
