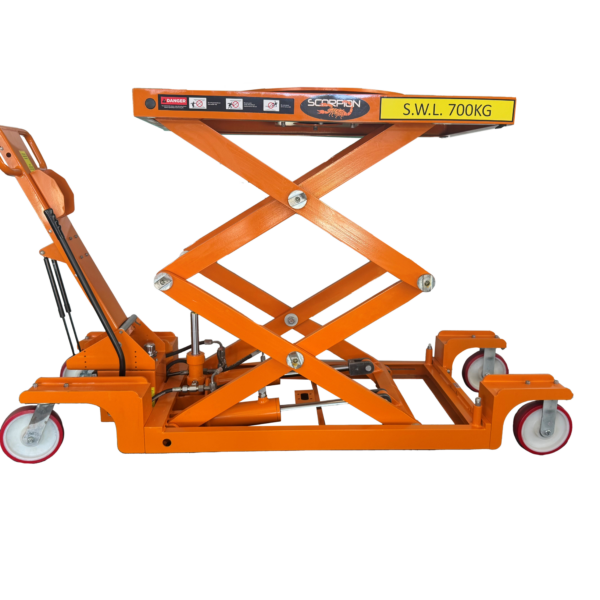

BPJ-3

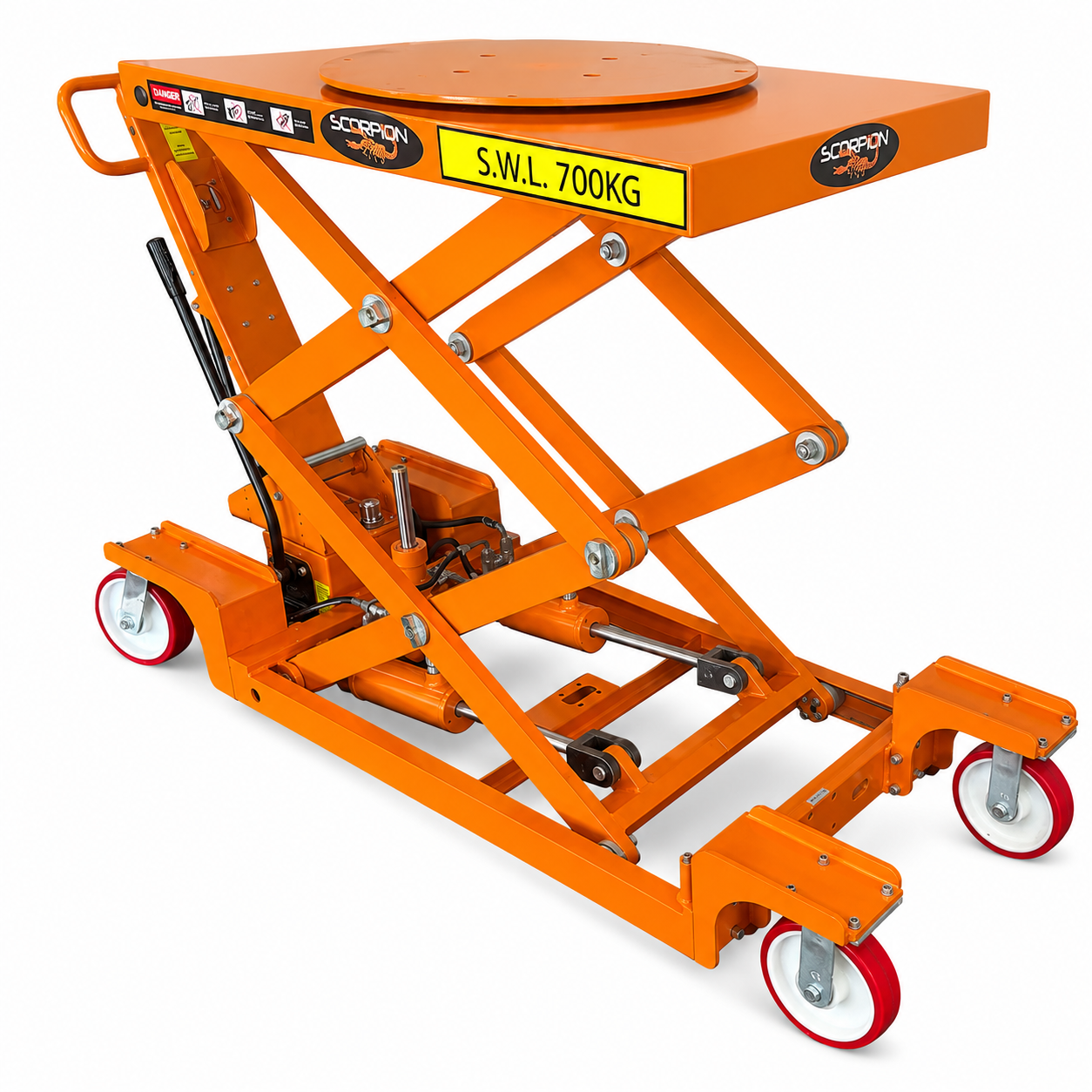

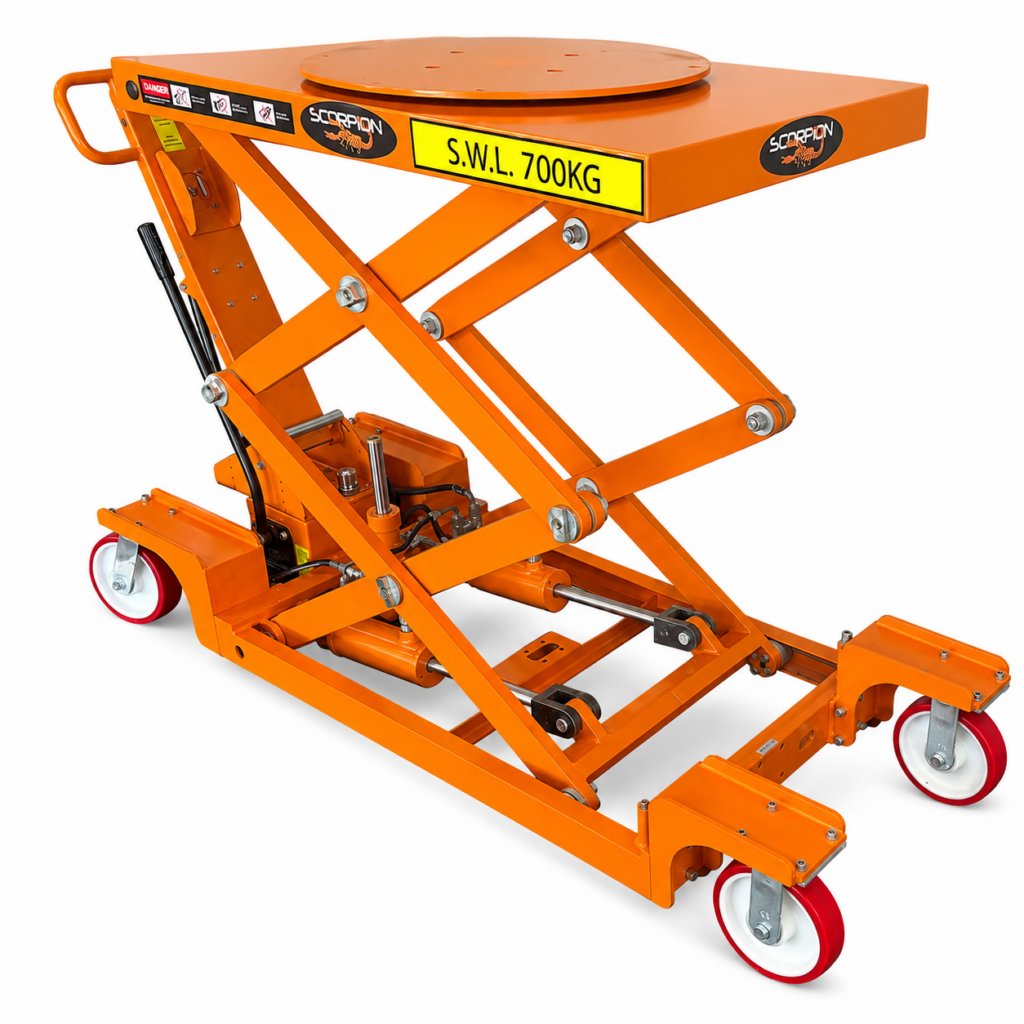

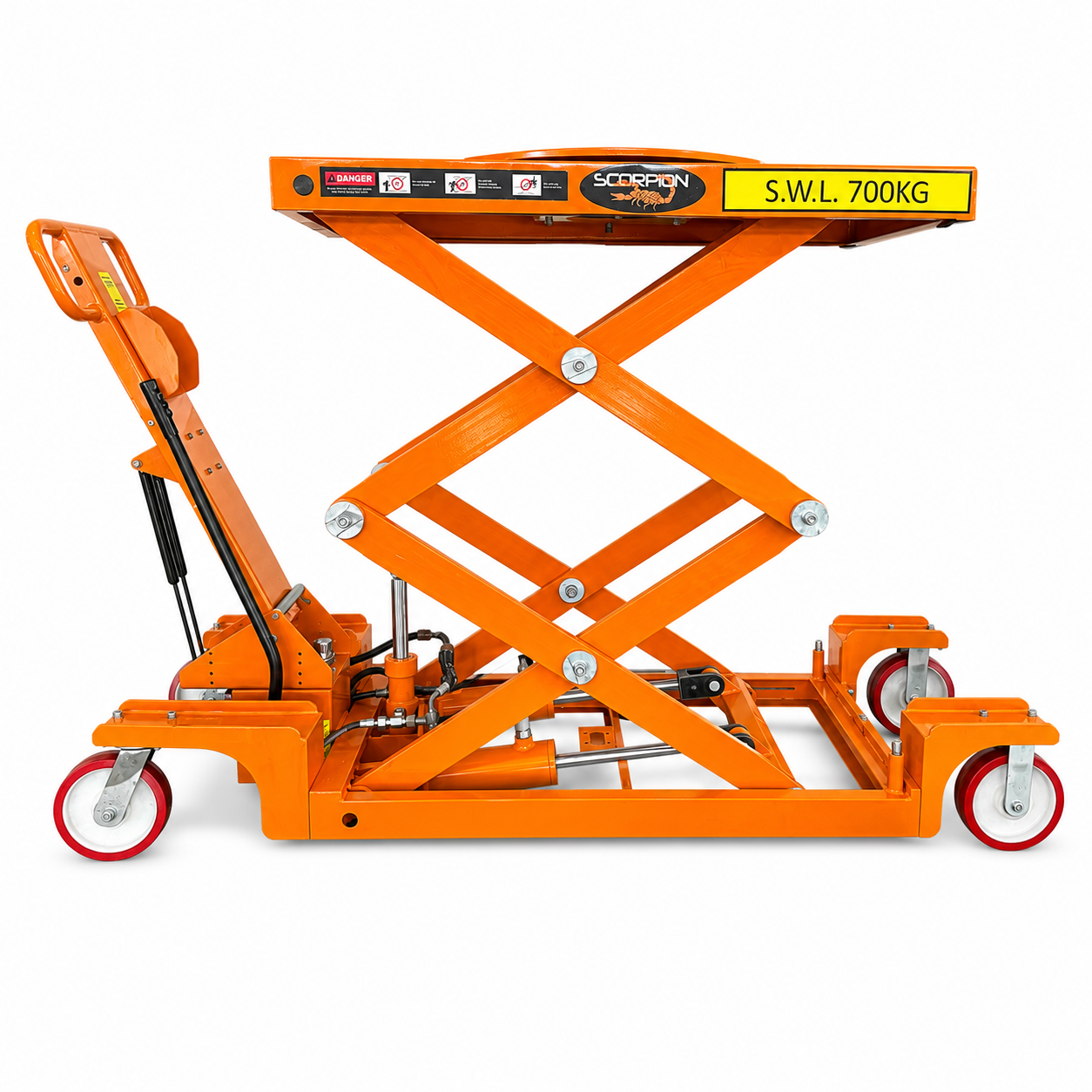

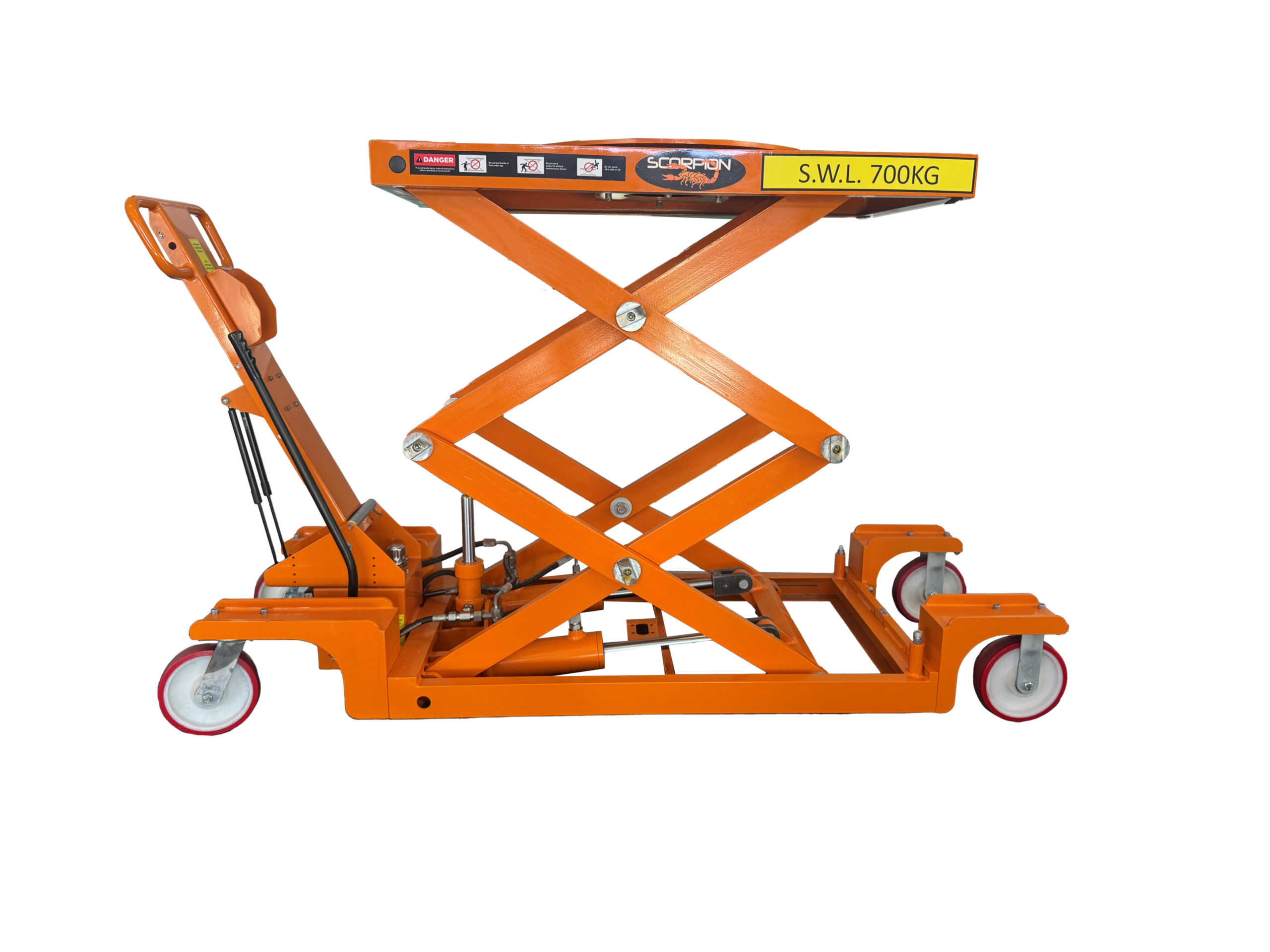

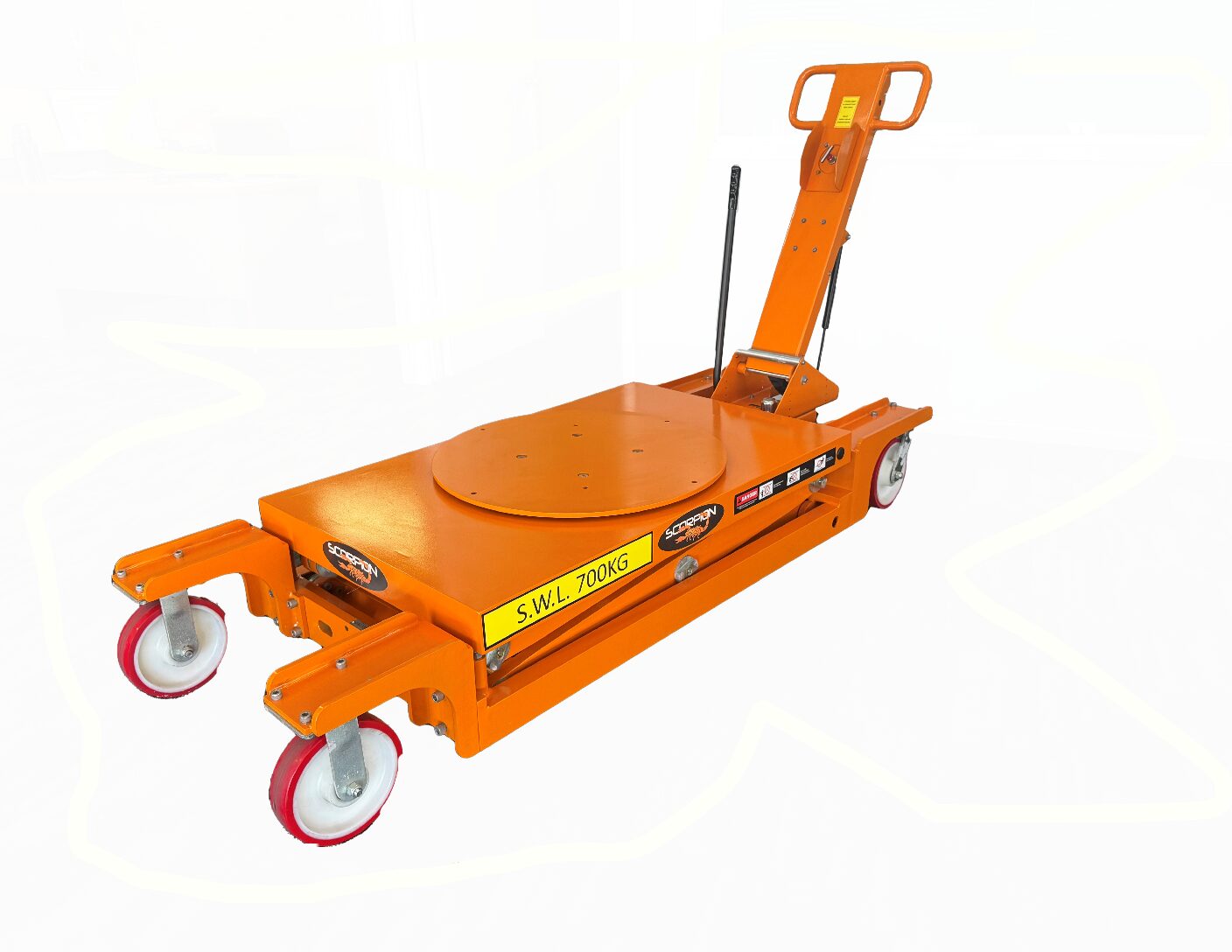

The BPJ-3 is the entry level fully manually operated Belly Pan Jack from the BPJ series offered by Scorpion Jacks. With a closed height of 305mm and an extended height of 1210mm, the BPJ-3 offers a cost-effective entry point for clients with singular or small fleets of dozers. The unit is raised using the handpump, located next to the handle, and is lowered by simply cracking the lower valve, located on the handpump. The jack is pushed or pulled around manually. With a rated capacity of 700kg, and featuring a rotating turntable, that incorporates pre-drilled mounting holes for Scorpion, or client provided attachments, the Scorpion Jacks BPJ-3 Belly Pan is a robust and reliable entry level Belly Pan Hoist. The BPJ-3 series of jacks are also designed to meet a minimum 2:1 safety factor on their nominated SWL. The simplicity of its design allows for easy maintenance and repair when and if needed, and best of all, this entry level unit can be upgraded to the -AL or the -ALD variants, whilst still maintaining its manual functionality if needed. A truly flexible, safe and cost-effective option for smaller operators, or one’s managing a challenging budget!
BPJ-3BPJ-3
ModelBPJ-3
Capacity - Kgs (LBs)700 (1543)
Closed Height mm (inches)305 (12)
Stroke mm (inches)905 (35.5/8)
Table Dimensions mm (inches)1153 x 700 (45.3/8 x 27.1/2)
Length mm (inches)1820 (71.5/8)
Width mm (inches)700 (27.1/2)
Lift MethodManual
Movement MethodManual
