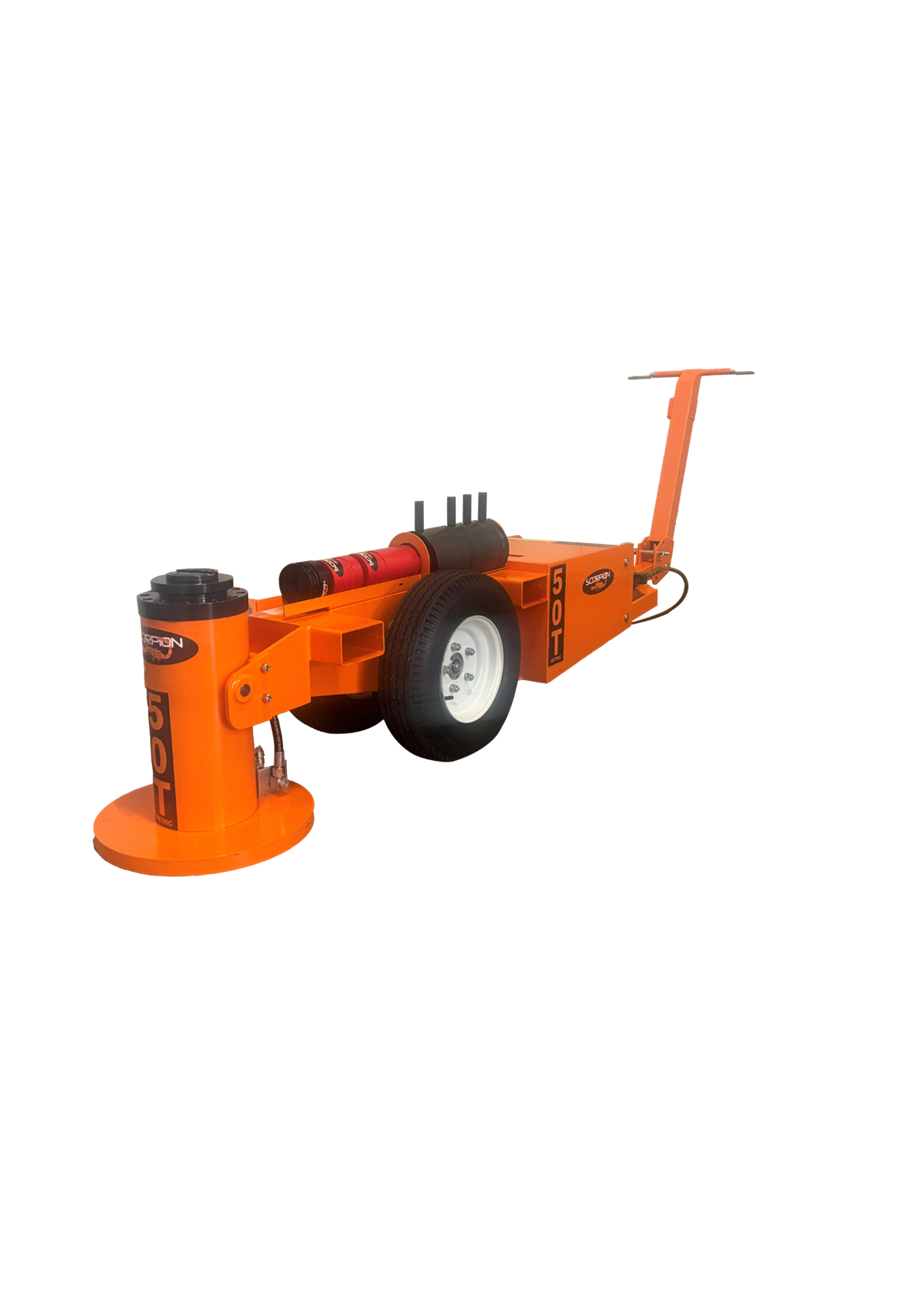

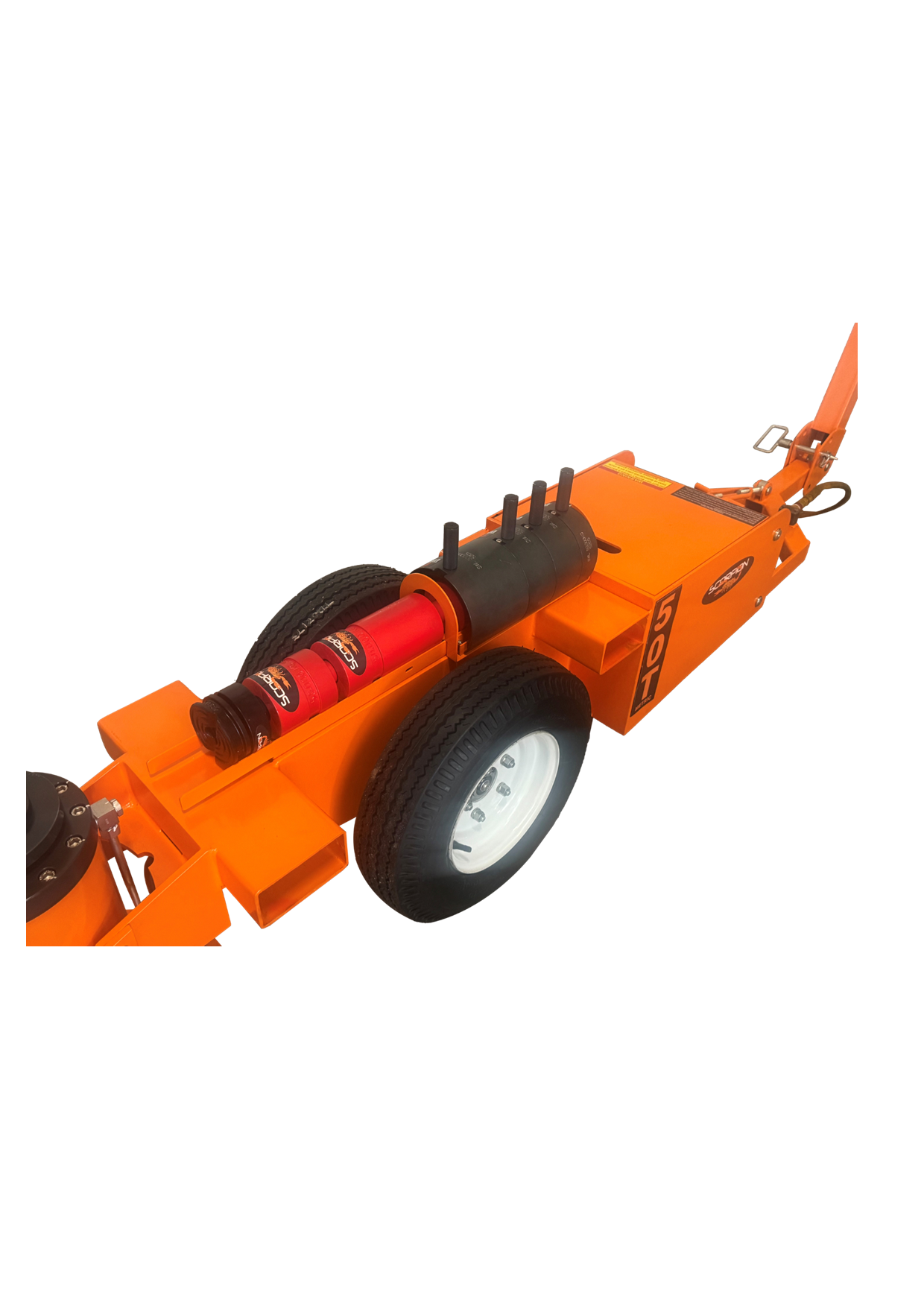

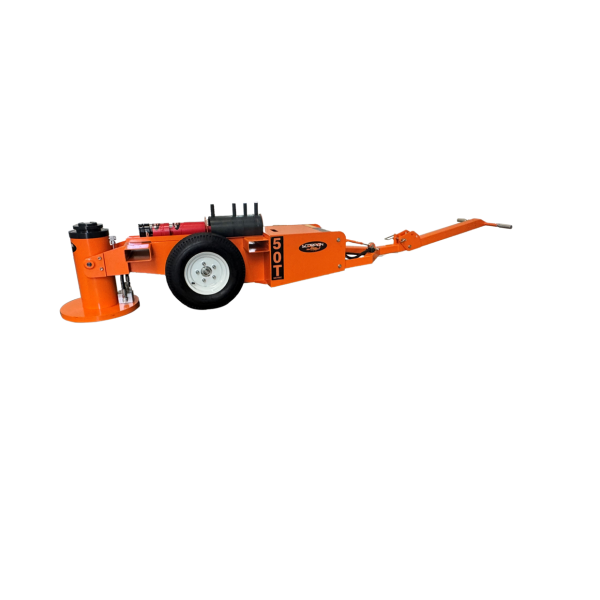

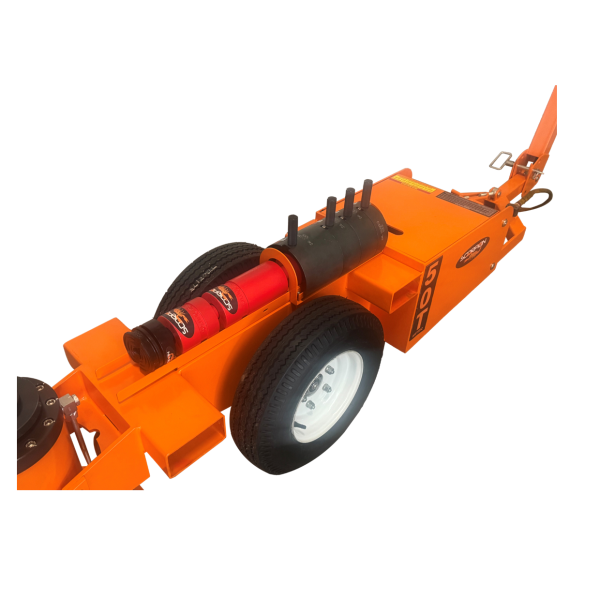

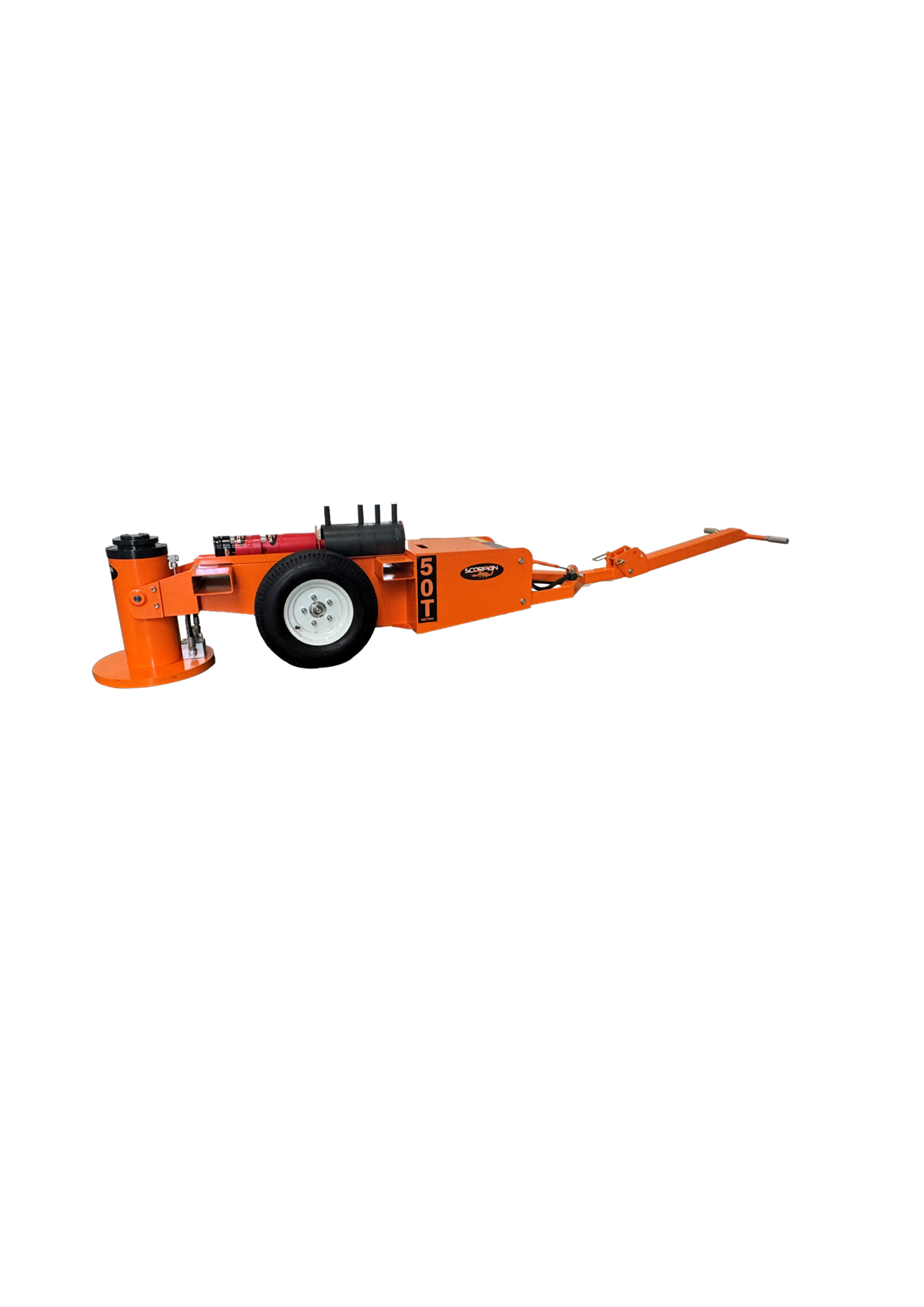

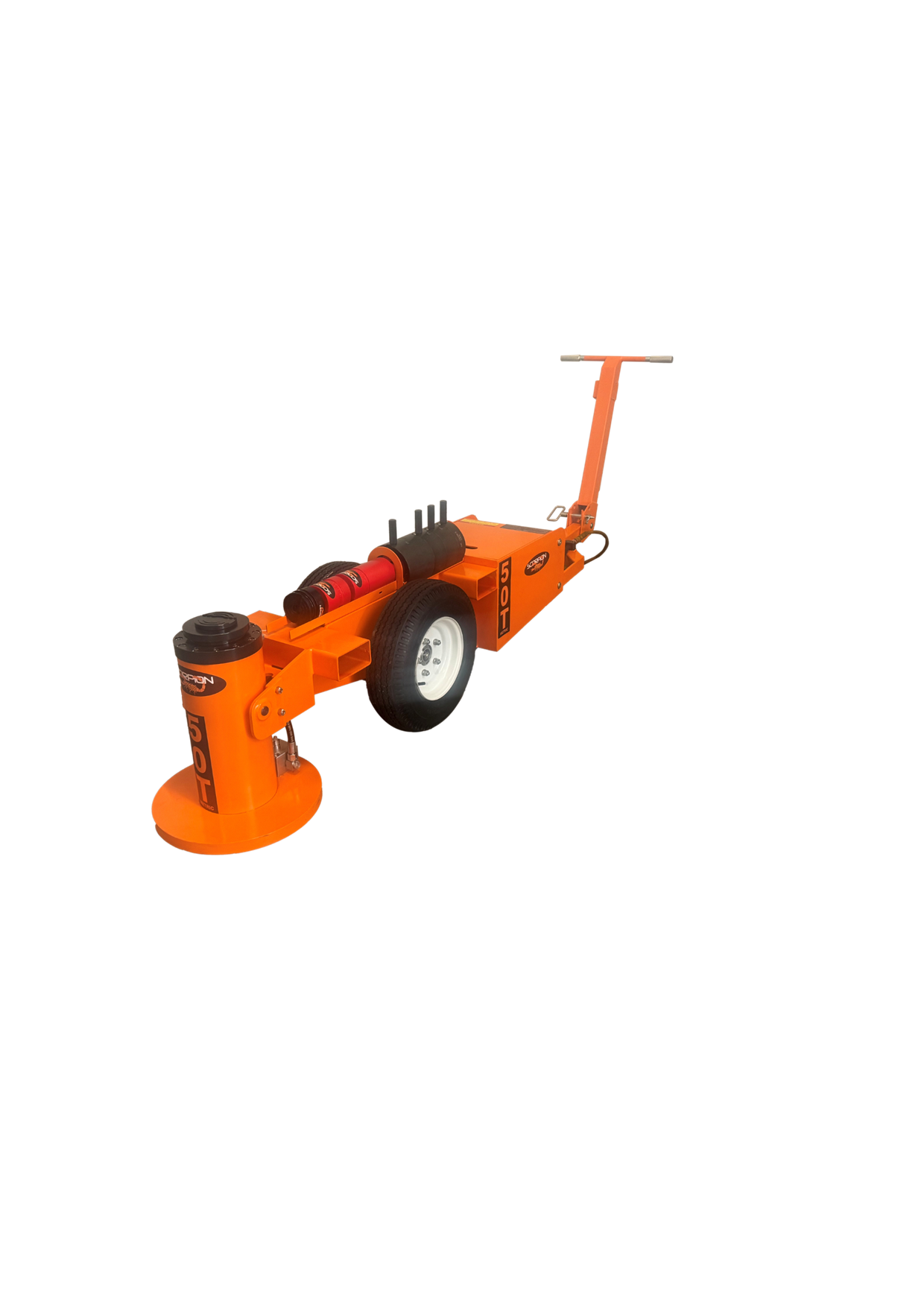

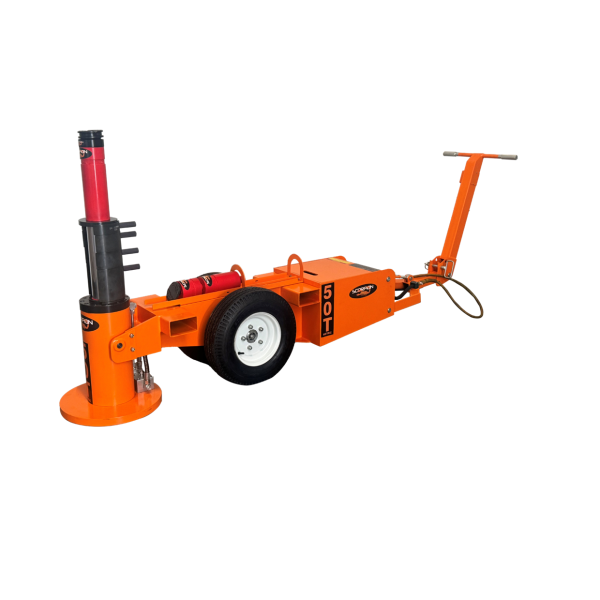

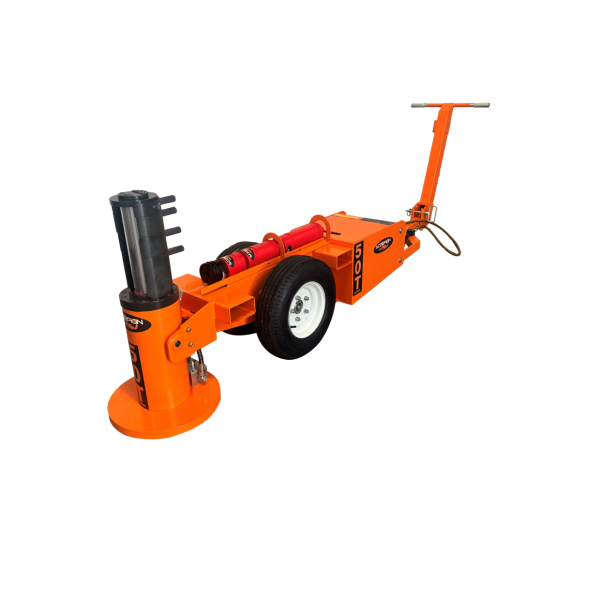

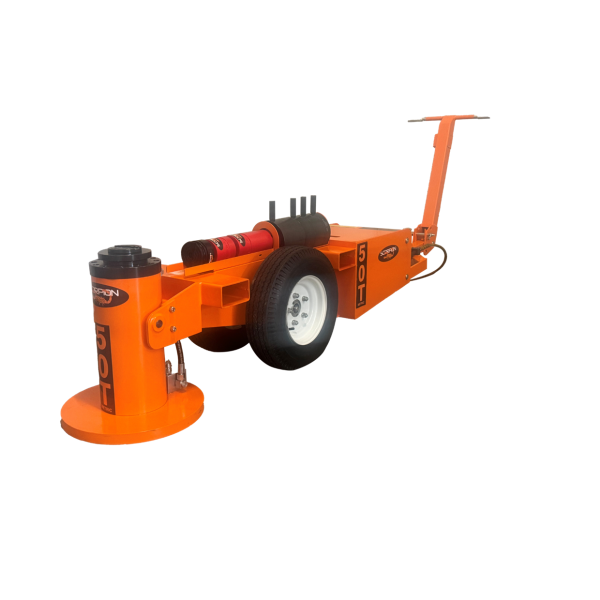

MEJ50-14

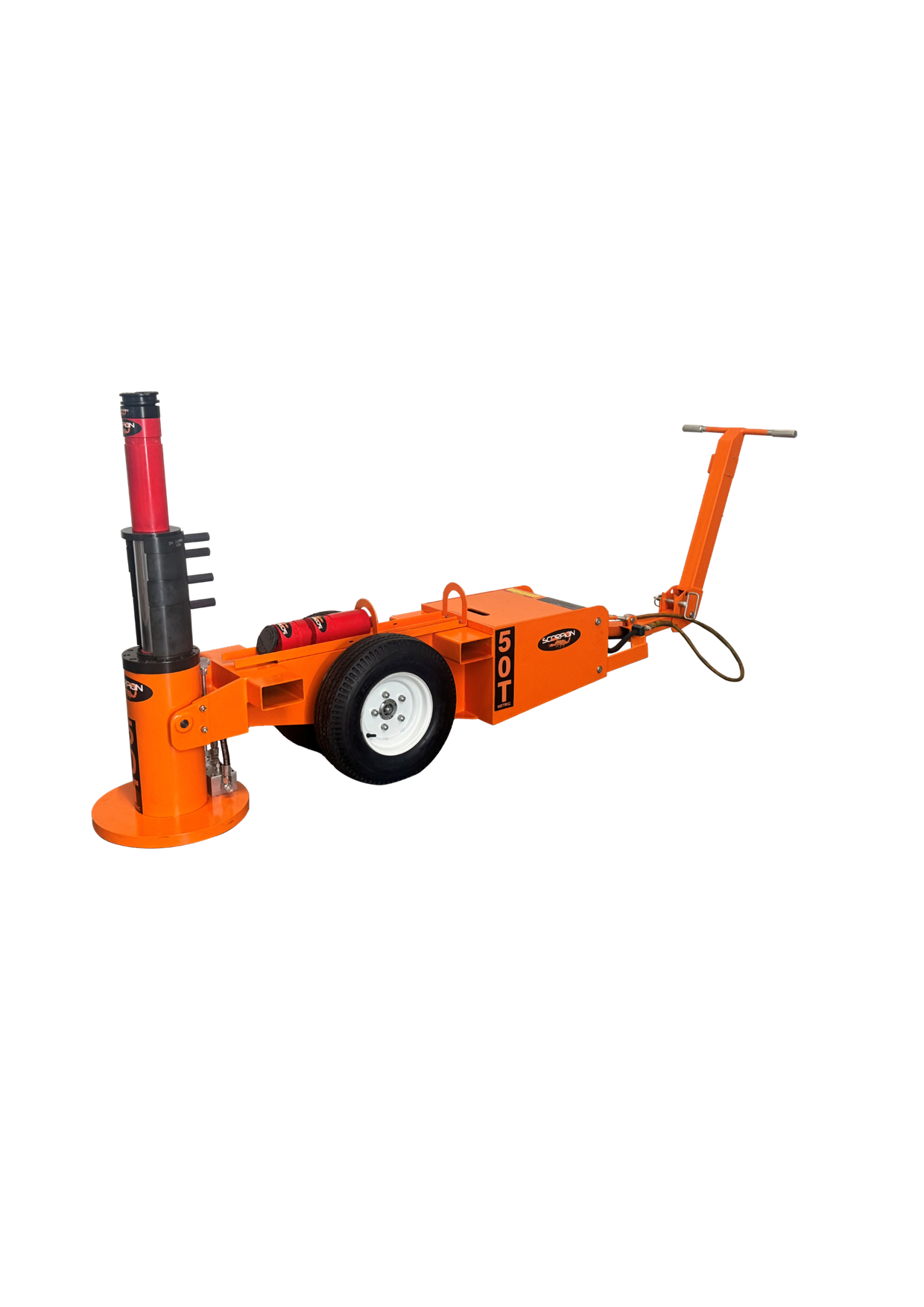

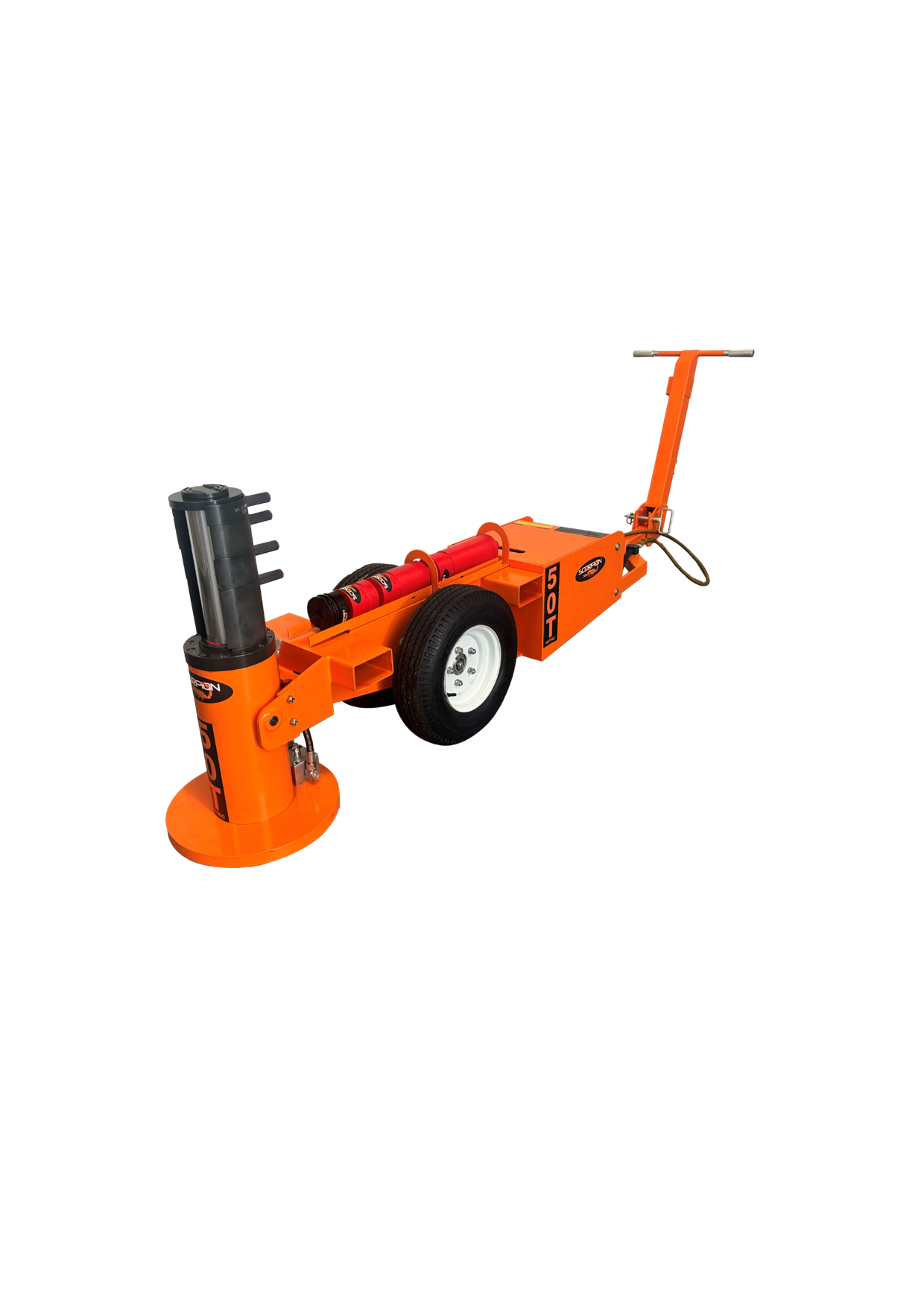

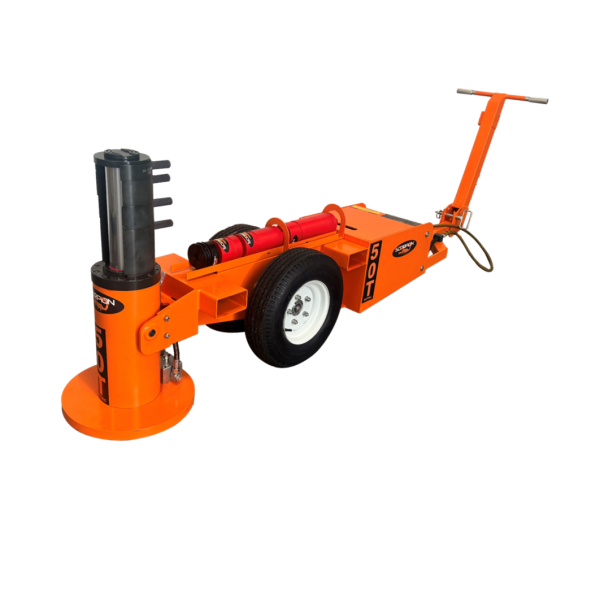

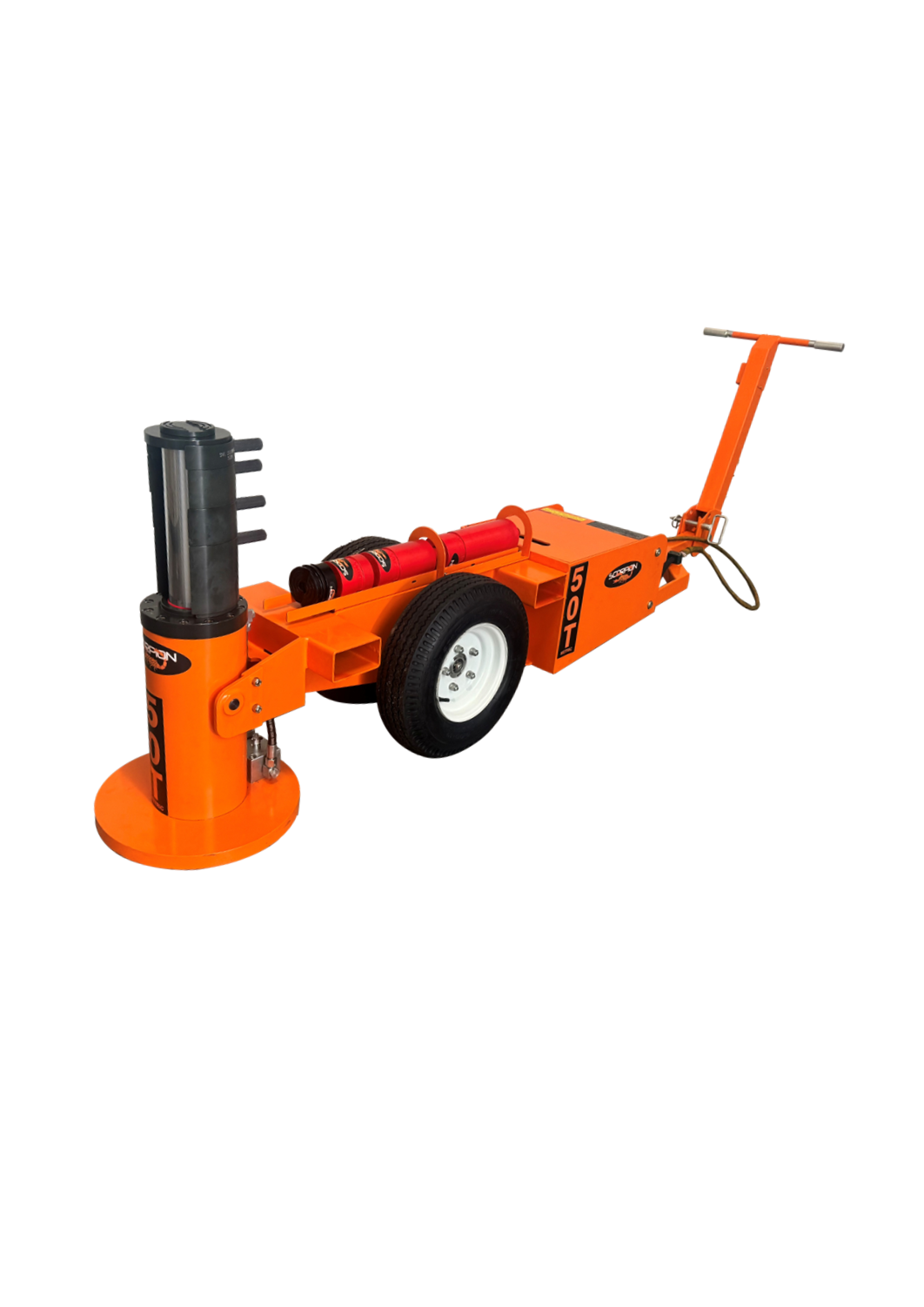

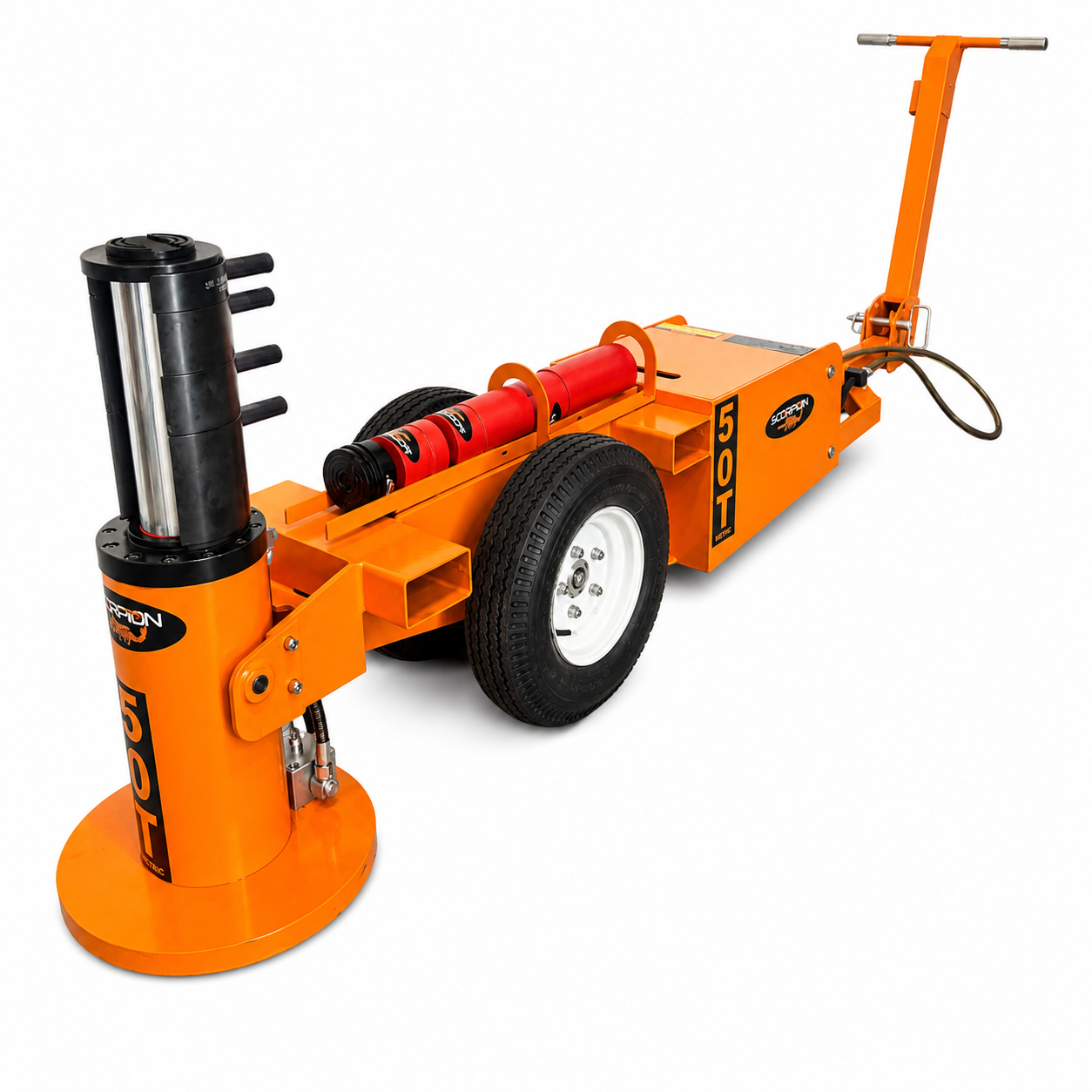

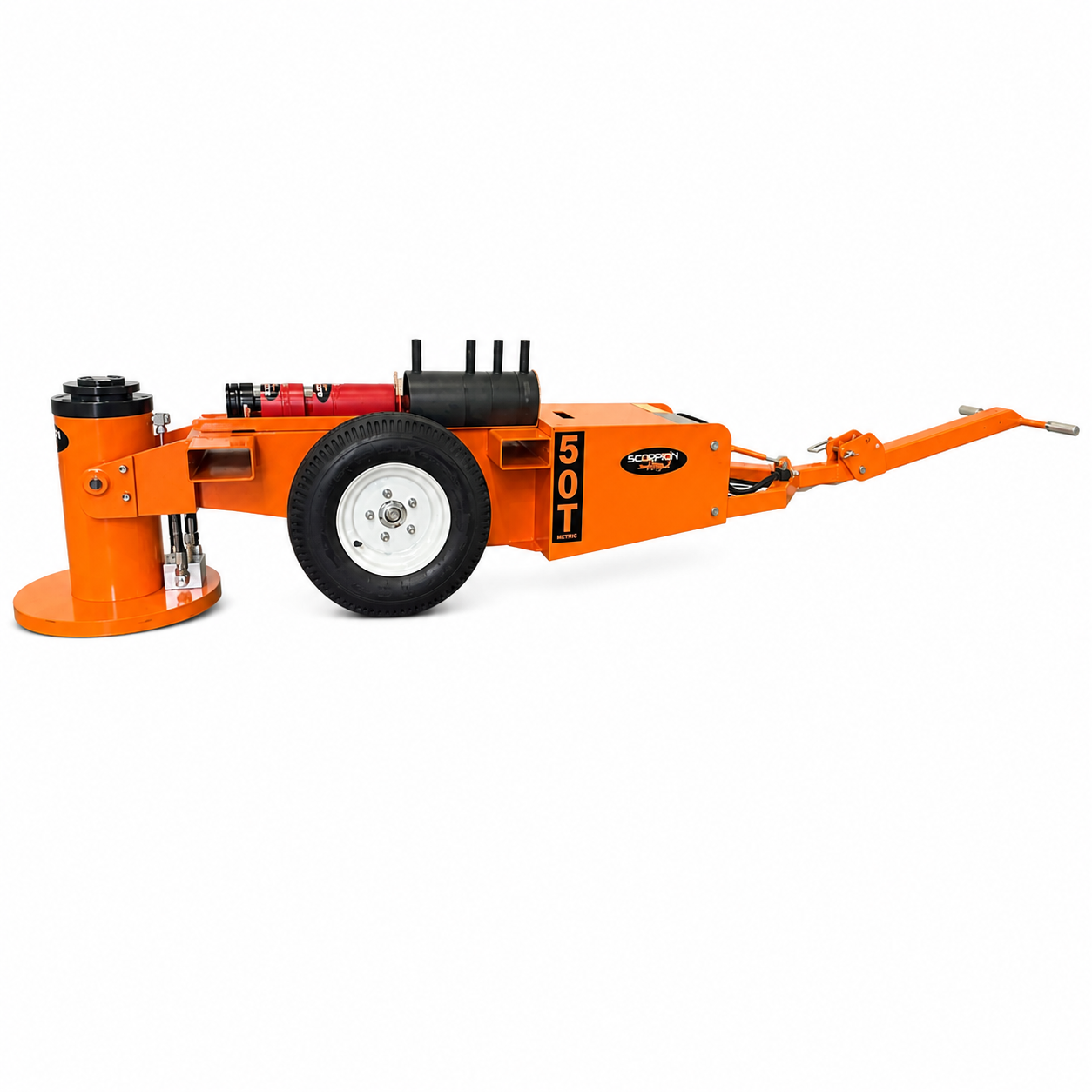

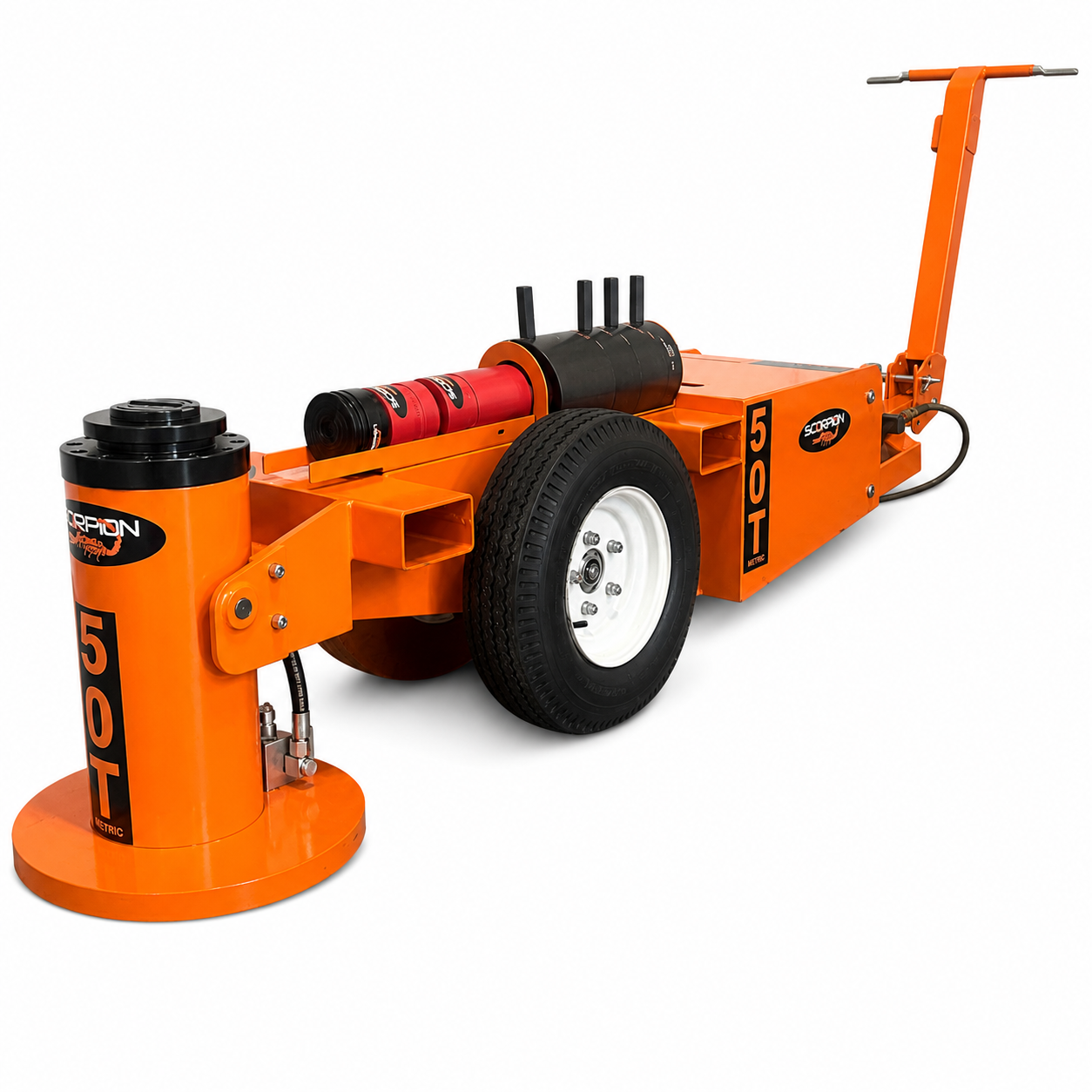

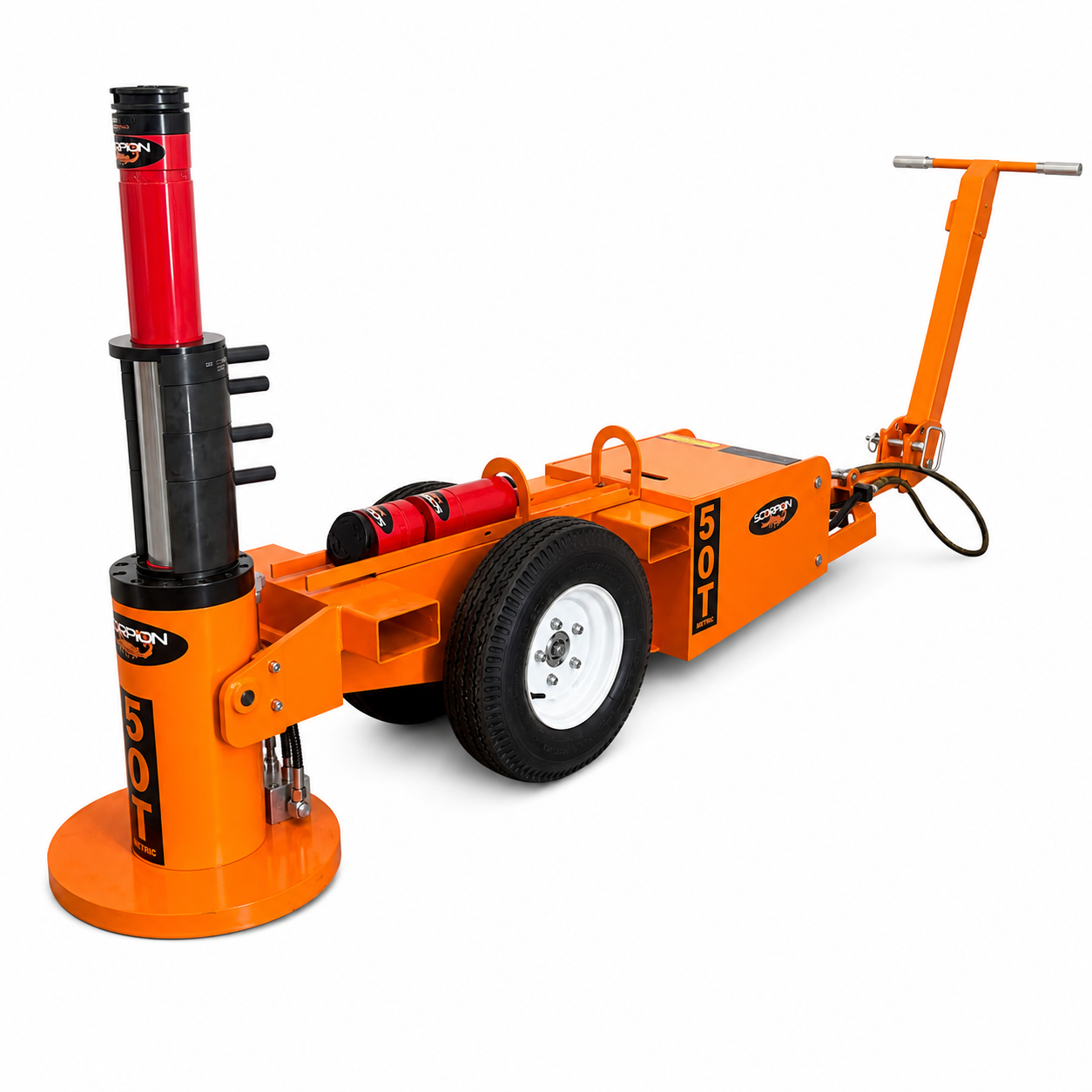

The MEJ50-14 is the most versatile model in the MEJ50 series of 50 Metric Tonne jacks. This air operated hydraulic jack powered by the proven premium quality of an SC air/hydraulic pump features a closed height of 546mm, a maximum extended height of 896mm, with a maximum chocked …height of 876mm. This jack offers excellent flexibility for mining or earthmoving operators across a range of small to mid-size machines including mid-size loaders, bulldozers, articulated rear dumpers, and rigid body dumpers as an example. The fold-out handle offers reach of more than 3m from lift point to operator and allows for the easy placement of the jack in between dozer ripper tines, or when inserting from in front a dual axle dumper. Box section lifting points allow for easy and safe long- distance movement, and the large base plate offers superior stability on the loosest of soils or gravels. Like the jacking cylinder itself, the load holding blocks have been designed to meet a minimum 2:1 safety factor on SWL, meaning that once in place, the jack can effectively be considered a fully compliant work stand. Fully welded 6 & 10mm steel chassis, with all critical components being fully enclosed, offers premium resistance to incidental damage. The large pneumatic wheels with sealed roller bearings, mean this jack is as easy if not easier to move than any non-powered jacks currently available on the market. Inside the jacking cylinder is a fully bronzed piston and gland bearing surfaces, along with broad lip glide ring and energizers seals that provide optimal cylinder life even if a seal kit change is overdue, or minor rod damage has occurred. With a bolt on gland, base plate and piston, the MEJ50 Series jacks are also by far the easiest to work on in the industry, which is a crucial consideration for remotely located clients. With available accessories including a range of extension dollies from 100mm through to 450mm, along with self-levelling load caps, and the load holding chocks, which are supplied as standard, the MEJ50-14 will deliver market leading flexibility and usability for years to come.
