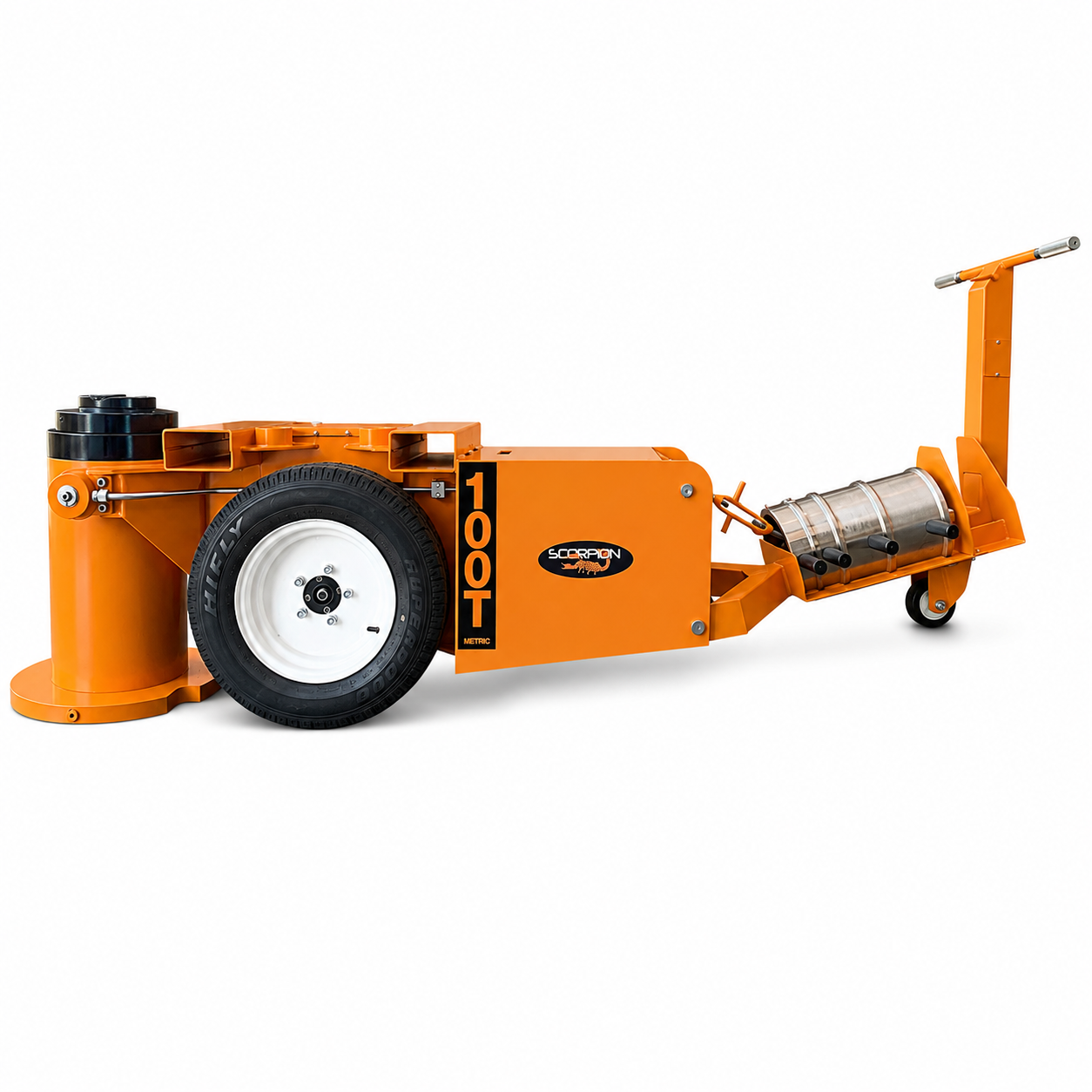

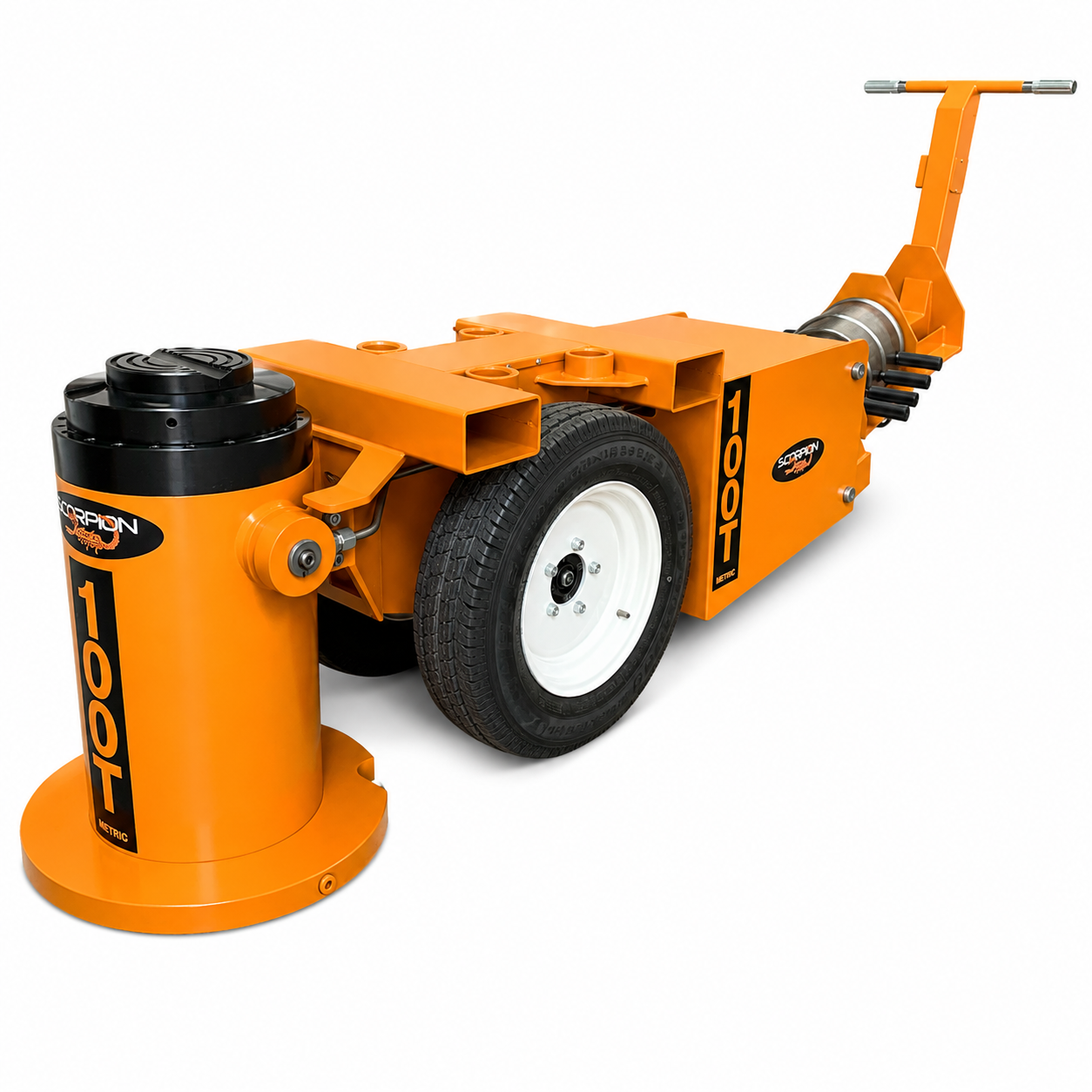

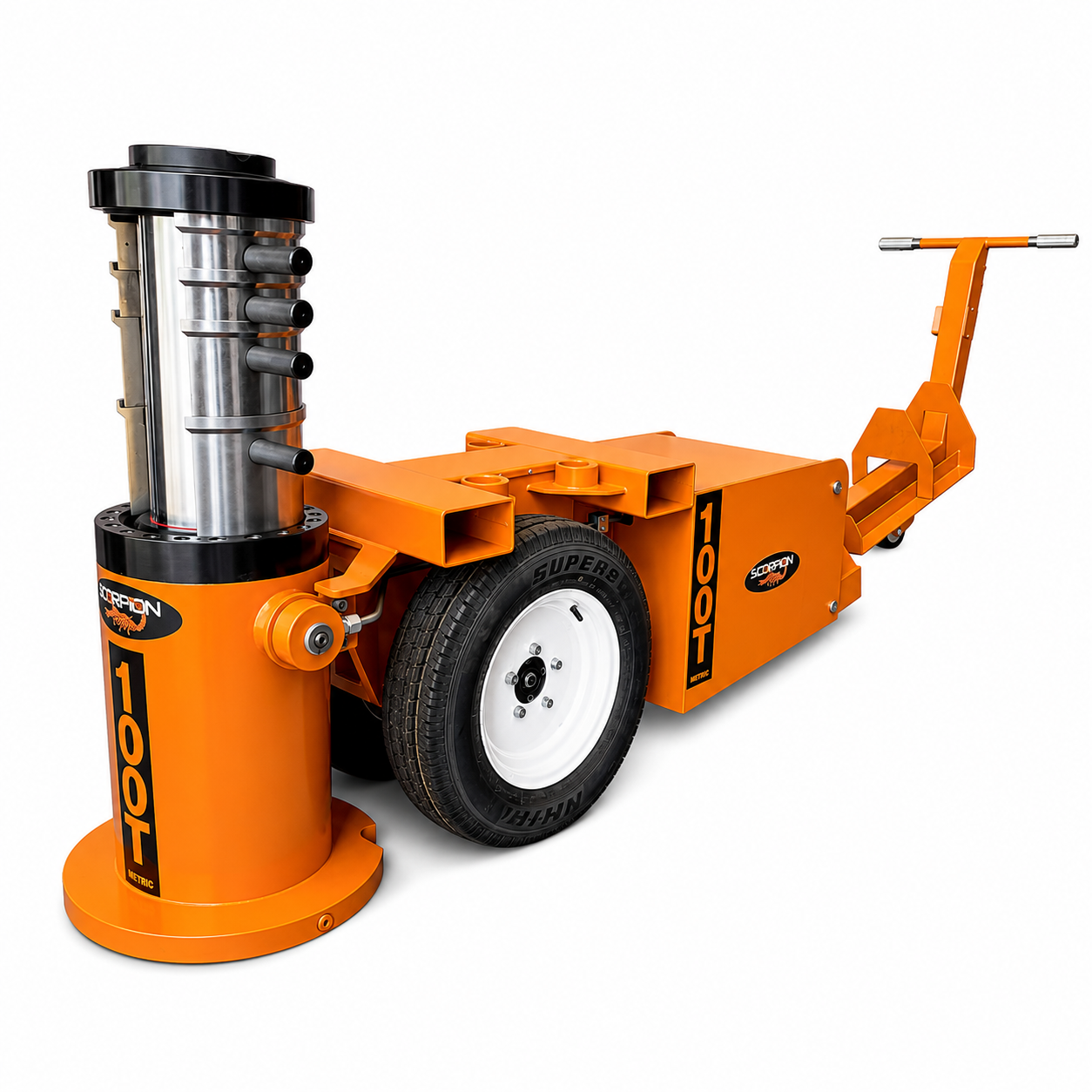

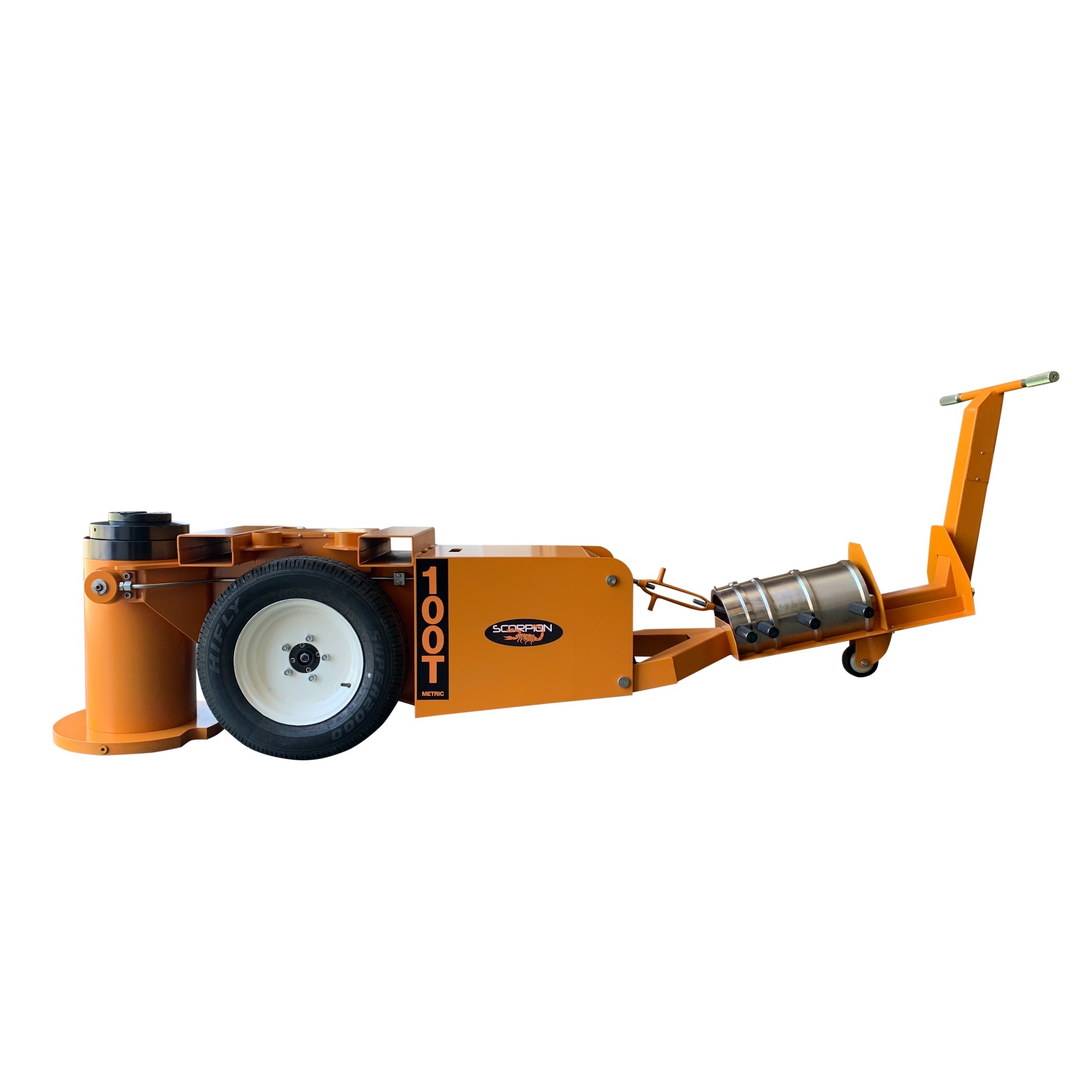

MLJ100-360

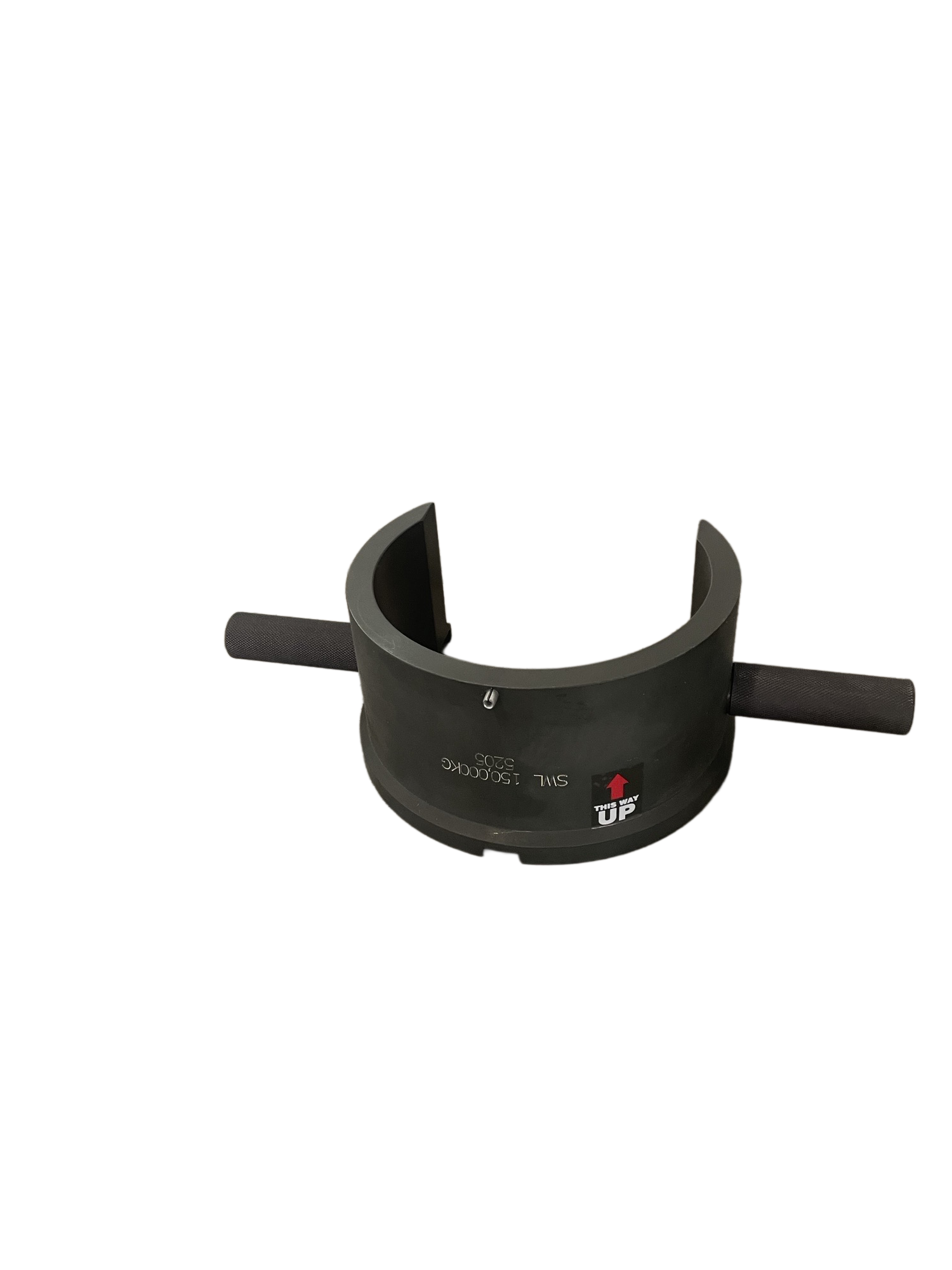

The MLJ100-360 is one of the most popular jack models in the 100 Metric Tonne Class. This air operated hydraulic jack powered by the proven premium quality of an SC air/hydraulic pump features a closed height of 646mm, a maximum extended height of 1006mm, with a maximum chocked h…eight of 993mm. This jack offers excellent flexibility for mining or earthmoving operators across a range of medium to larger machines including mid-size loaders, D10 and D11 bulldozers, articulated rear dumpers, and rigid body dumpers up to CAT 789’s, or any 150T payload class as an example. The clever placement of the load chock transport rack provides counterweight to the lift cylinder, and when coupled with large 13” pneumatic wheels this jack offers market leading ease of movement for non-powered 100 Metric Tonne jacks. Box section lifting points allow for easy and safe long- distance movement, and the large base plate offers superior stability on the loosest of soils or gravels. Like the jacking cylinder itself, the load holding blocks have been designed to meet a minimum 2:1 safety factor on SWL, meaning that once in place, the jack can effectively be considered a fully compliant work stand. Fully welded 6 & 10mm steel chassis, with all critical components being fully enclosed, offers premium resistance to incidental damage. The large pneumatic wheels with sealed roller bearings, mean this jack is as easy if not easier to move than any non-powered jacks currently available on the market. Inside the jacking cylinder is a fully bronzed piston and gland bearing surfaces, along with broad lip glide ring and energisers seals that provide optimal cylinder life even if a seal kit change is overdue, or minor rod damage has occurred. With a bolt on gland, base plate, and piston, the MLJ100 Series jacks are also by far the easiest to work on in the industry, which is a crucial consideration for remotely located clients. With available accessories including a range of extension dollies from 100mm through to 600mm, along with self-levelling, and clevis load caps, plus the load holding chocks, which are supplied as standard, the MLJ100-360 will deliver market leading reliability and manoeuvrability for years to come. Lastly with the addition to the range now of optional remote control lift and lower functions, the lifting process has never been safer, or more reliable
