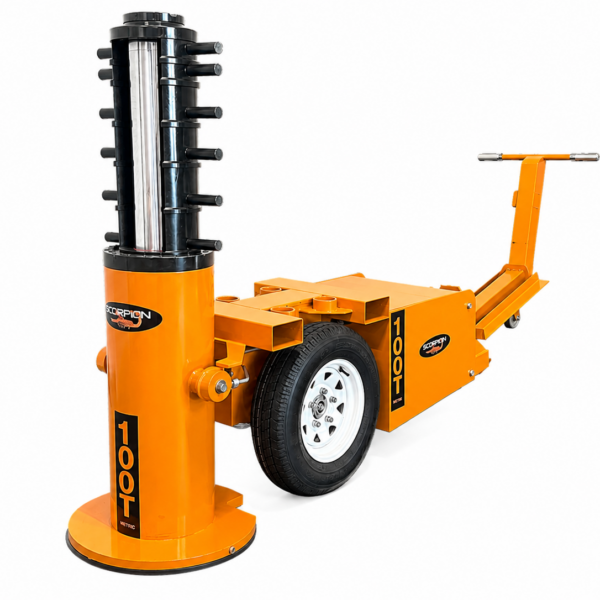

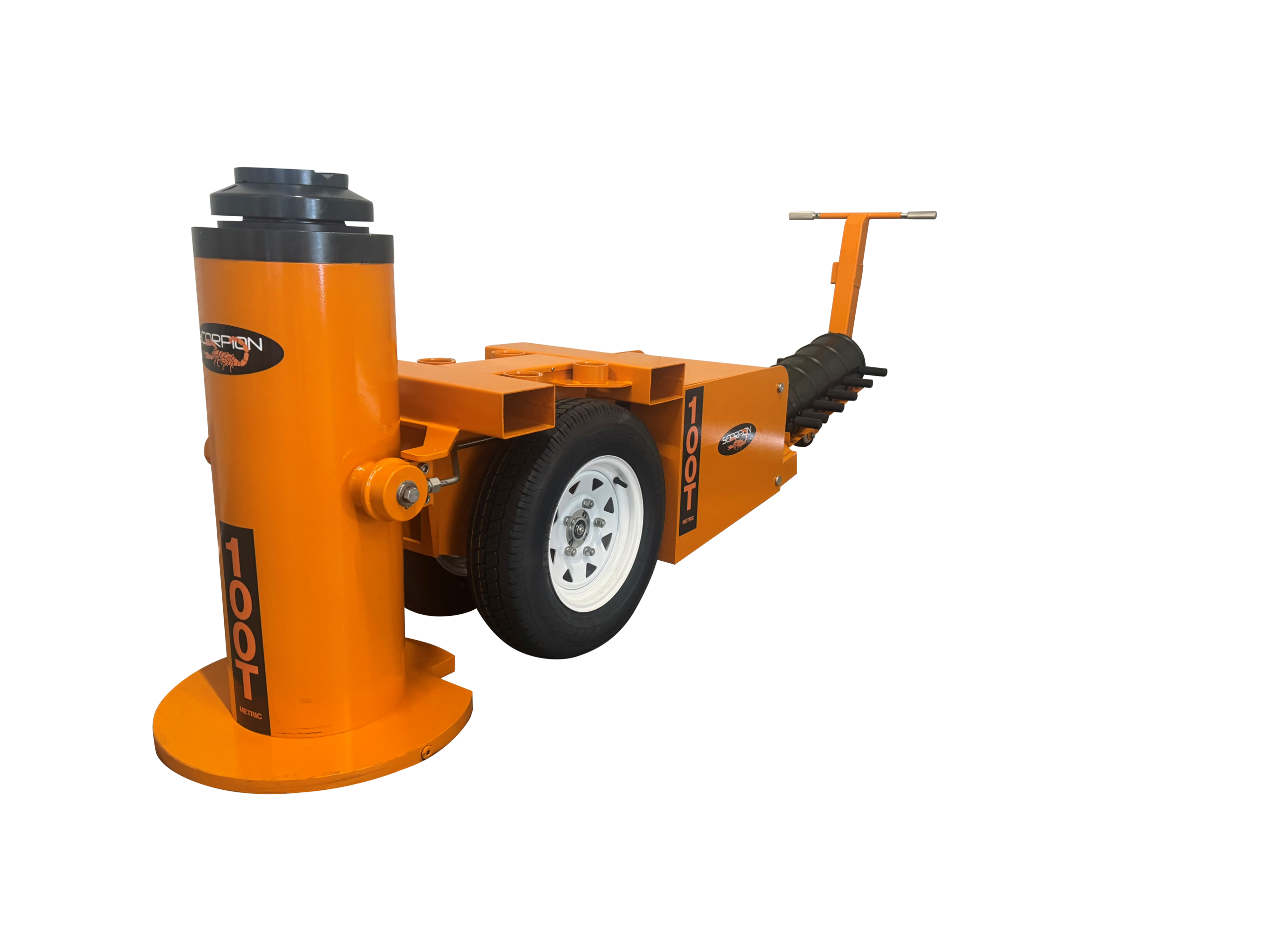

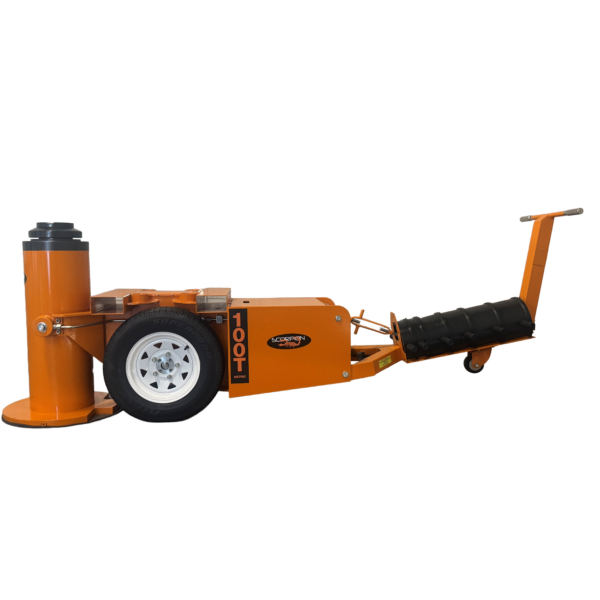

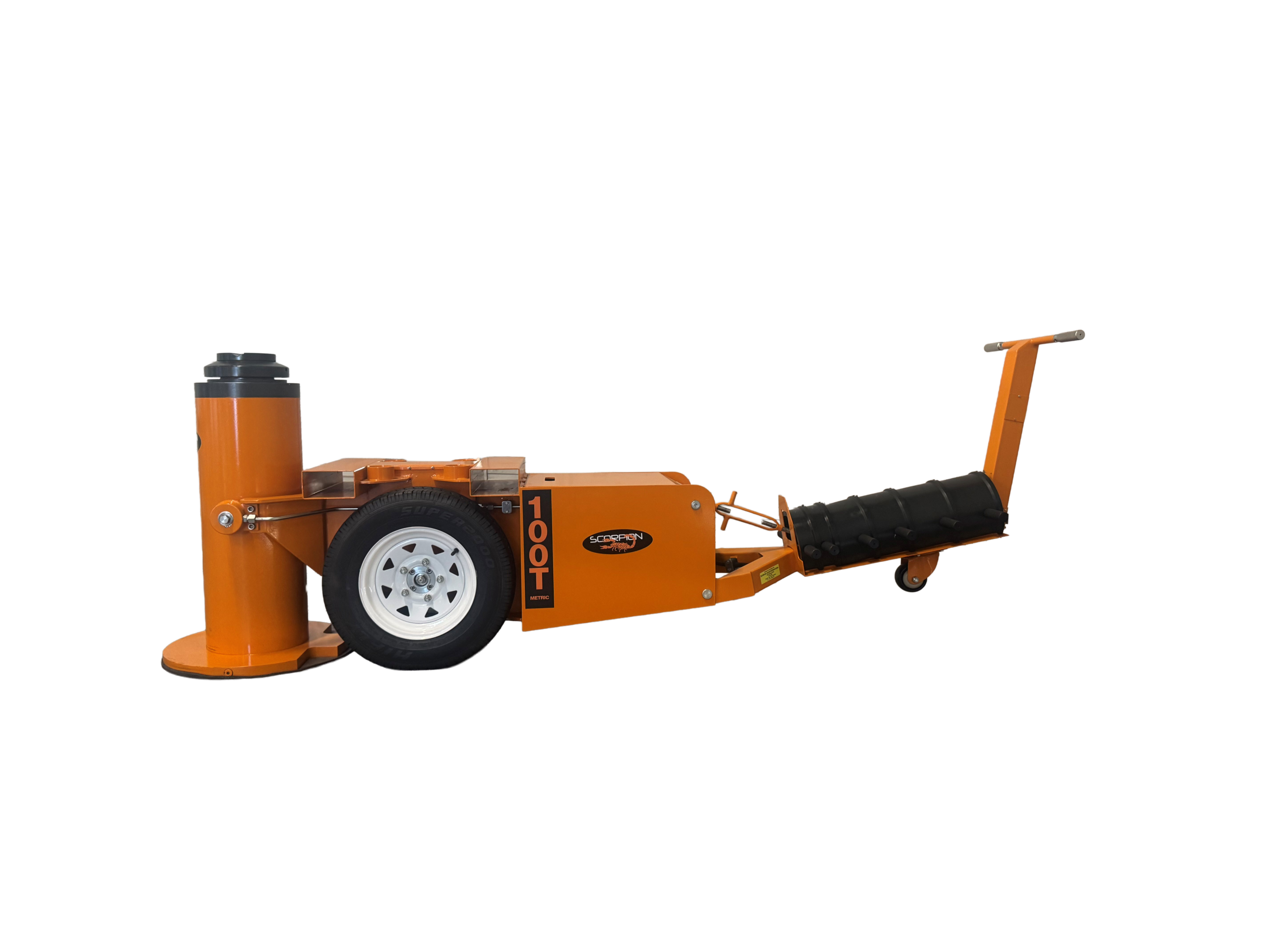

MLJ100-660

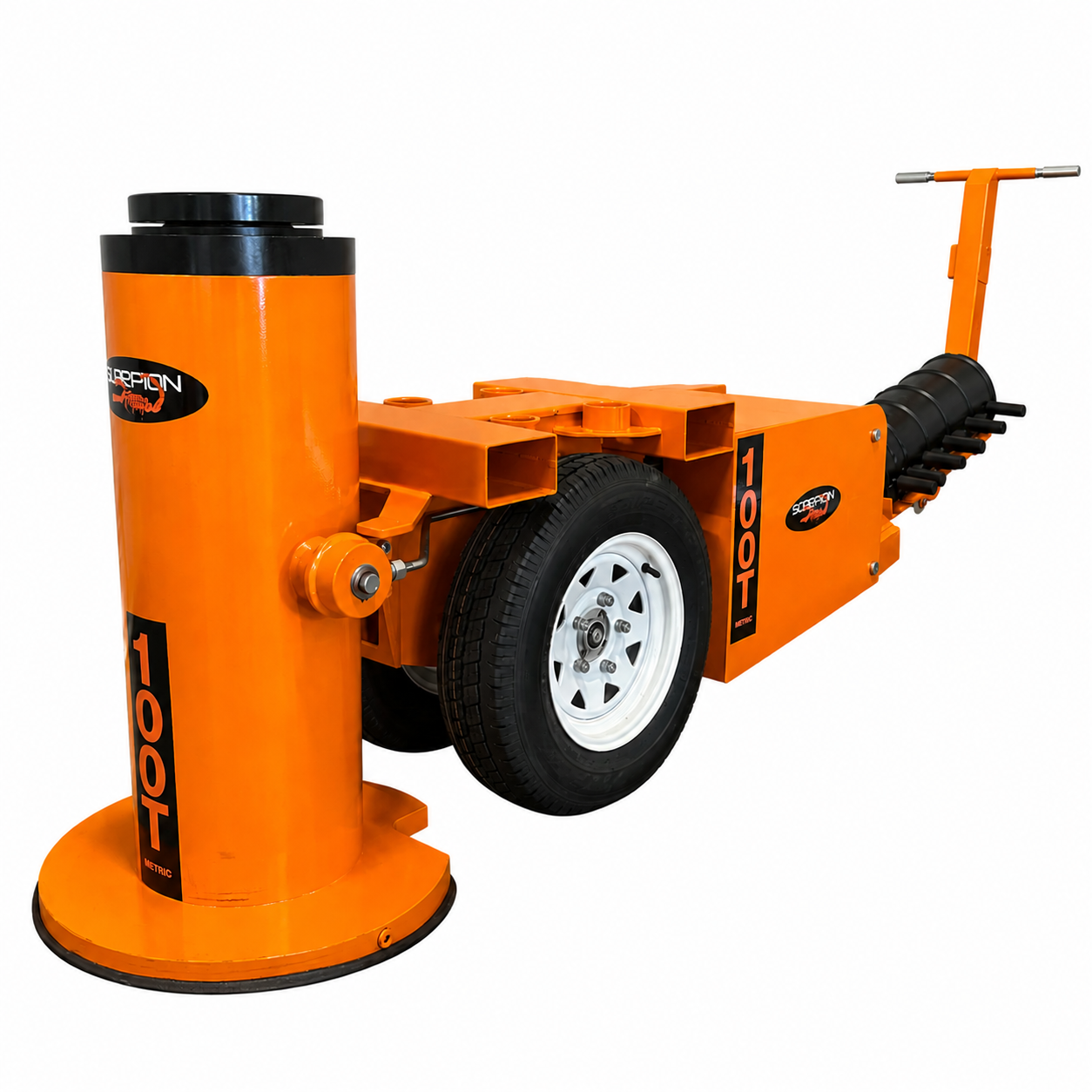

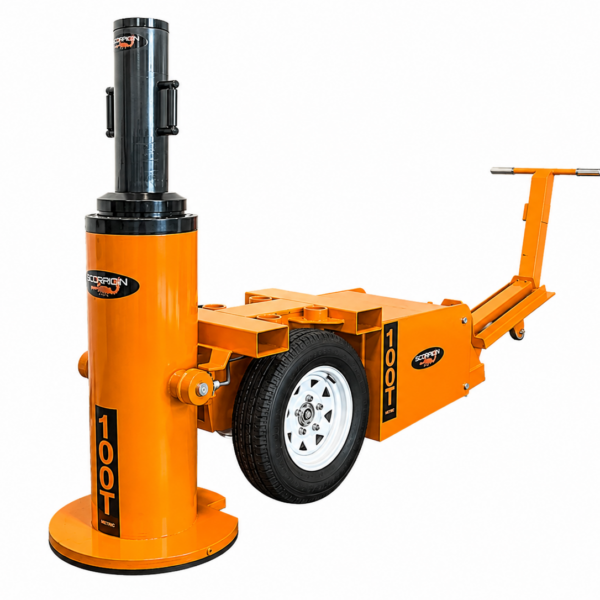

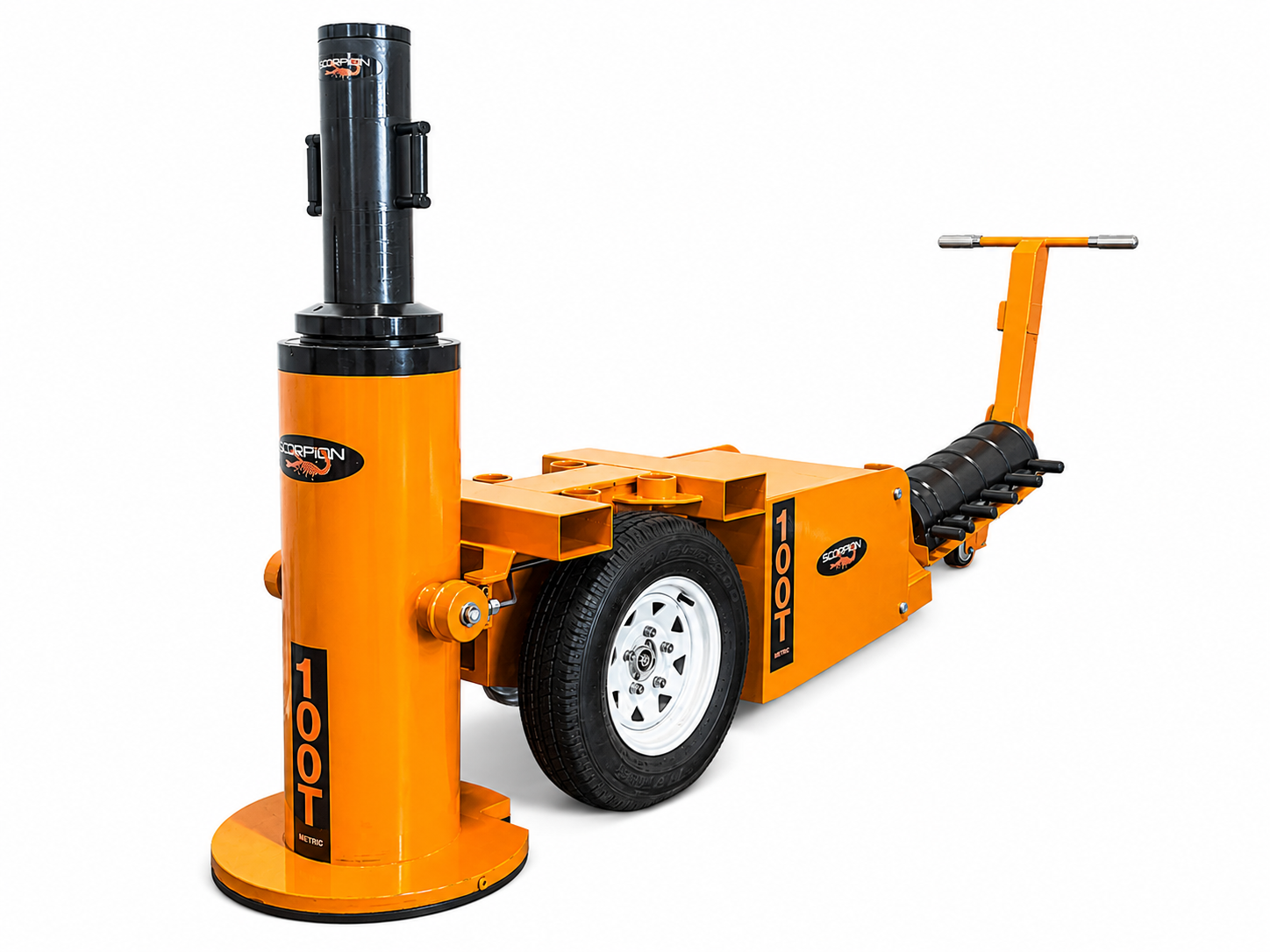

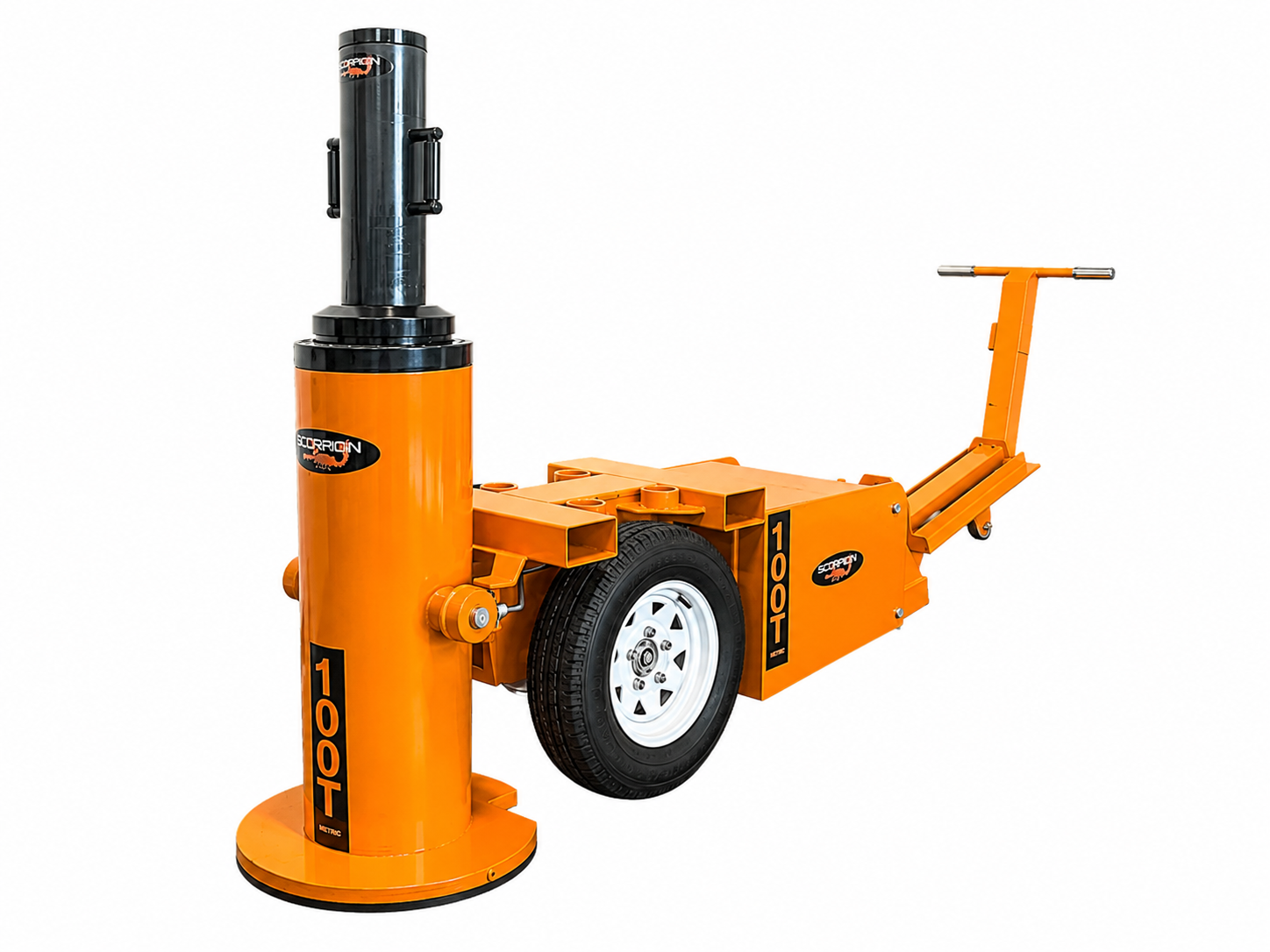

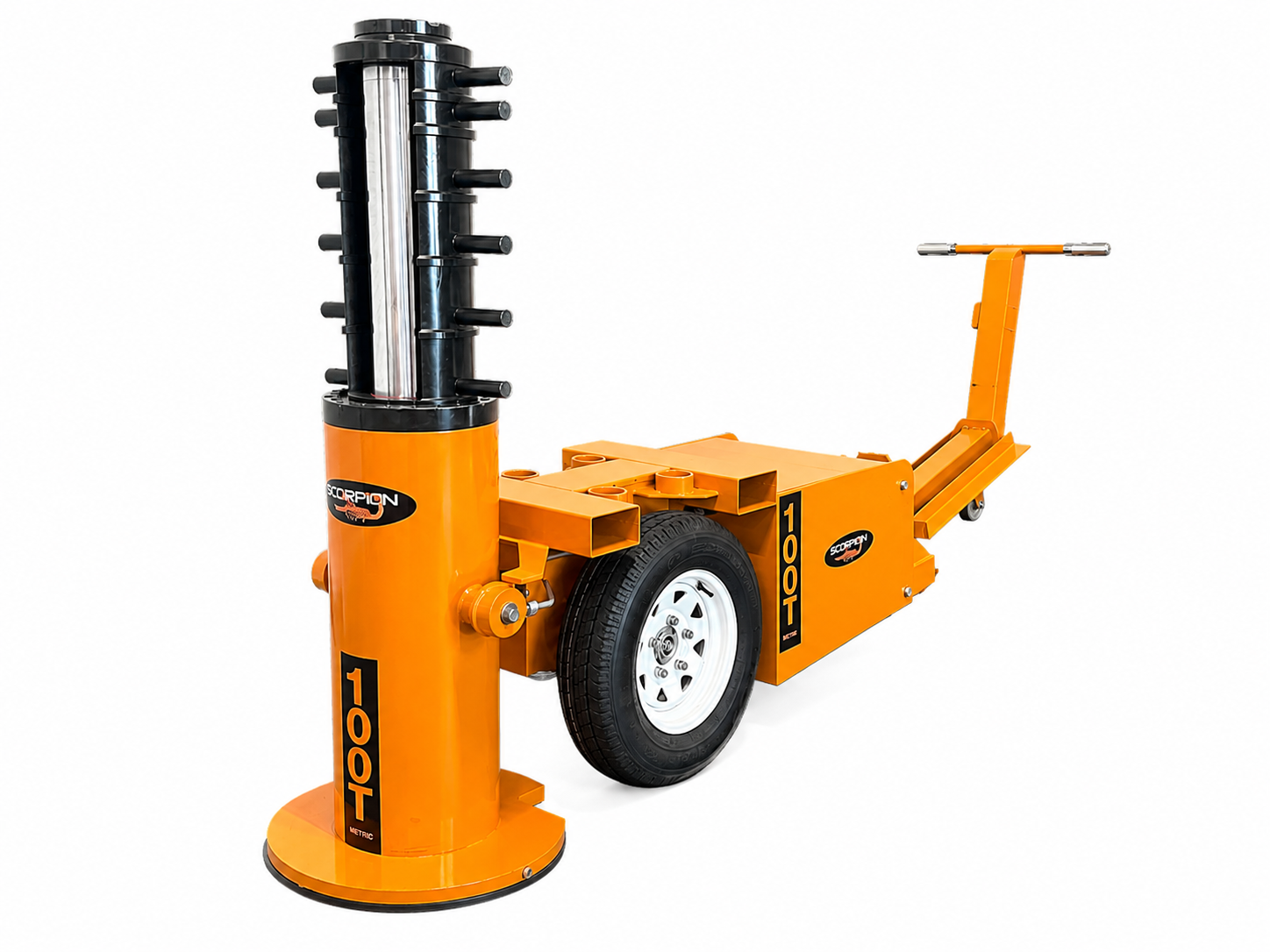

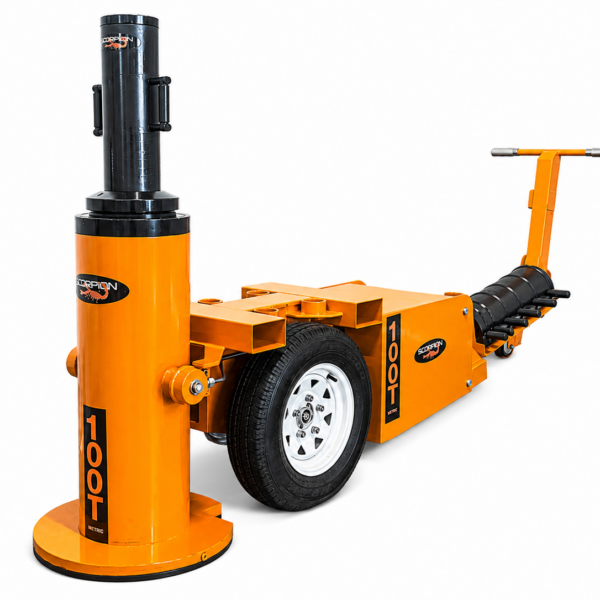

The MLJ100-660 features the longest single stage stroke of any jack in the Scorpion Range. In the 100 Metric Tonne Class, it stands alone for its ability to perform lifts without the need for extensions in nearly all applications. This air operated hydraulic jack powered by the proven premium quality of an SC air/hydraulic pump features a closed height of 925mm, a maximum extended height of 1586mm, with a maximum chocked height of 1560mm. This jack offers excellent application for mining or earthmoving operators who have fleets with larger rigid body dump trucks, and larger loaders which features large clearances on rear bumpers. Will suit any rigid body truck from Cat 77 through to Cat 793 or equivalent in any other brand as an example. The clever placement of the load chock transport rack provides counterweight to the lift cylinder, and when coupled with large 13” pneumatic wheels this jack offers market leading ease of movement for non-powered 100 Metric Tonne jacks. Box section lifting points allow for easy and safe long- distance movement, and the large base plate offers superior stability on the loosest of soils or gravels. Like the jacking cylinder itself, the load holding blocks have been designed to meet a minimum 2:1 safety factor on SWL, meaning that once in place, the jack can effectively be considered a fully compliant work stand. Fully welded 6 & 10mm steel chassis, with all critical components being fully enclosed, offers premium resistance to incidental damage. The large pneumatic wheels with sealed roller bearings, mean this jack is as easy if not easier to move than any non-powered jacks currently available on the market. Inside the jacking cylinder is a fully bronzed piston and gland bearing surfaces, along with broad lip glide ring and energisers seals that provide optimal cylinder life even if a seal kit change is overdue, or minor rod damage has occurred. With a bolt on gland, base plate, and piston, the MLJ100 Series jacks are also by far the easiest to work on in the industry, which is a crucial consideration for remotely located clients. With available accessories including a range of extension dollies from 100mm through to 600mm, along with self-levelling, and clevis load caps, plus the load holding chocks, which are supplied as standard, the MLJ100-660 will deliver market leading reliability and manoeuvrability for years to come. Lastly with the addition to the range now of optional remote-control lift and lower functions, the lifting process has never been safer, or more reliable.
MLJ100-660MLJ100-660MLJ100-660MLJ100-660
ModelMLJ100-660
Capacity – Metric Tonnes (Short Tonnes)100 (110)
Closed Height mm (inches)925 (36.7/16)
Stroke mm (inches)660 (26)
Extended Height with chocks mm (inches)1560 (61.7/16)
Base Diameter mm (inches)533 (21)
Length mm (inches)2670 (105)
Width mm (inches)476 (18.3/4)
Min handle height mm (inches)762 (30)
Air Pressure for Max Capacity (bar) 6.5
Bronzed Piston & GlandYES
PumpReciprocating Air Pump
Reservoir Capacity (Litres)40
Overall height mm (inches)600 (23.5/8)
Tyre Size155R12C
Ground Clearance mm (inches)120 (4.3/4)
Weight kg (lbs)650 (1433)
Onboard Dolly StorageYES
