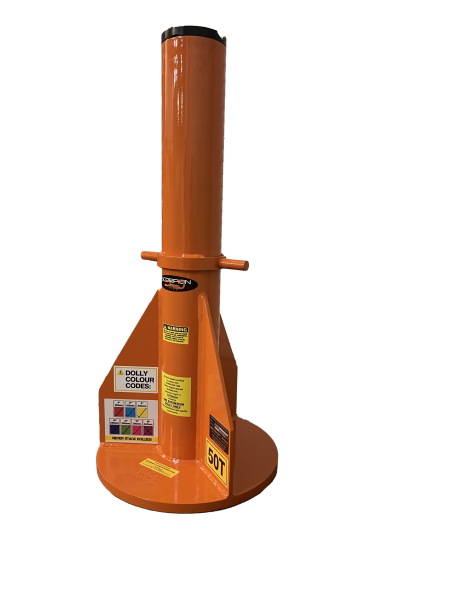

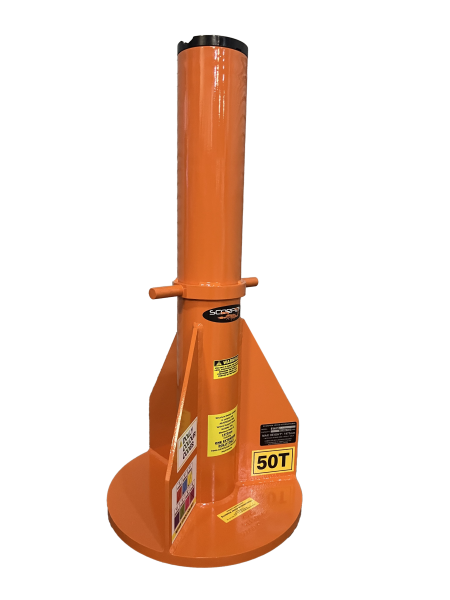

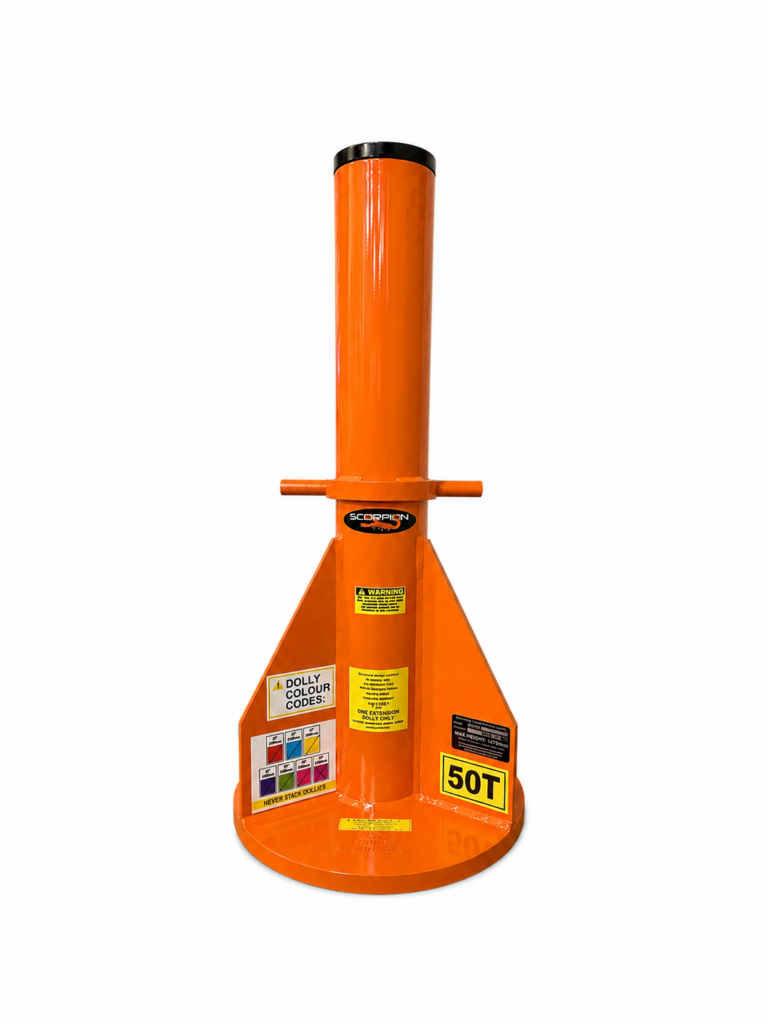

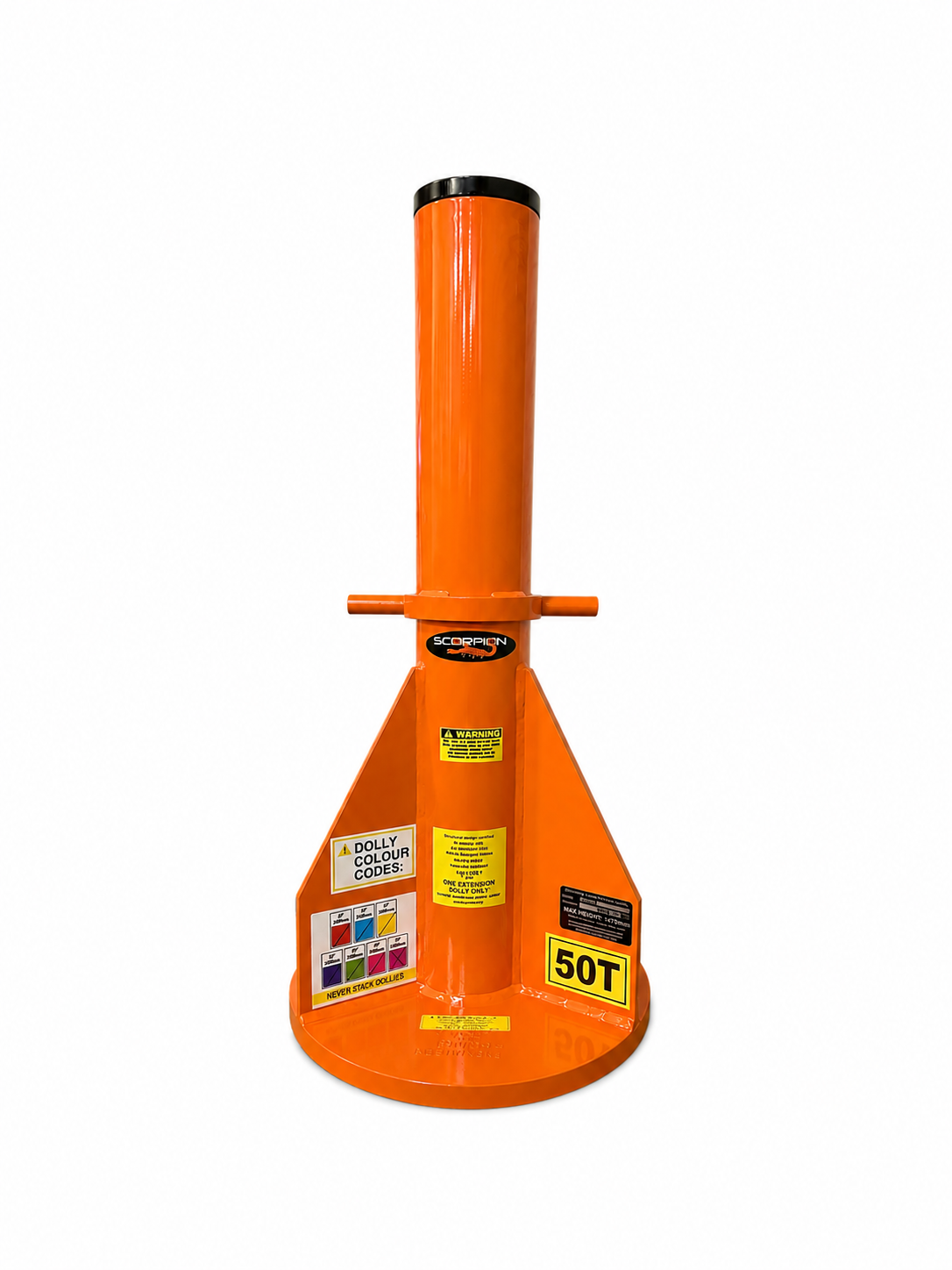

STT50-42

The Scorpion STT50 Series of fixed height floor stands are an ultra-sturdy, durable, easy to move and easy to use floor stand system, which are offered in a variety of starting heights, and that can have a range of extensions dollies added to them to achieve the optimal height. T…he STT50-42 is a fixed height stand with a nominal height of 1067mm. Additional height increments can be achieved by adding extension dollies to this stand, and with the addition of the longest compliant extension in the 50T range, a nominal maximum height of 1437 mm can be achieved. Ideal for use with medium to larger sized surface machines, they offer a highly stable design with which to work under. In addition to the extension options, the STT50 series also offers a variety of specialty load caps to ensure you have the correct engagement surface for every mining and earthmoving application. The STT50-42 stands can be easily moved with the use of the HT50 hand truck, and extension dollies and load caps can be neatly stored in the Dolly Rack option.
ModelSTT50-42
Capacity – Metric Tonnes (Short Tonnes)50 (55)
Stand Height mm (inches)1067 (42)
Max Stand Height mm (inches)1448 (57)
