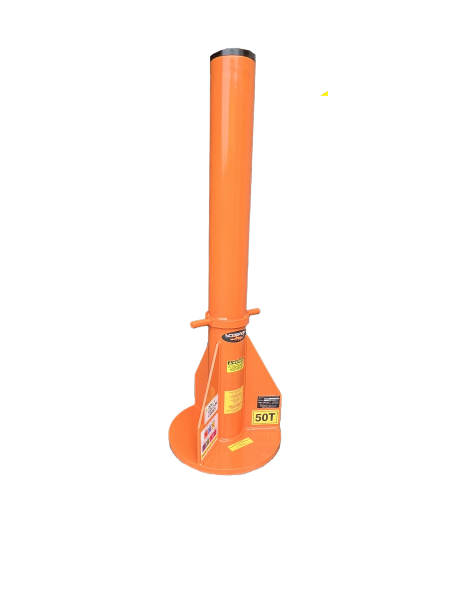

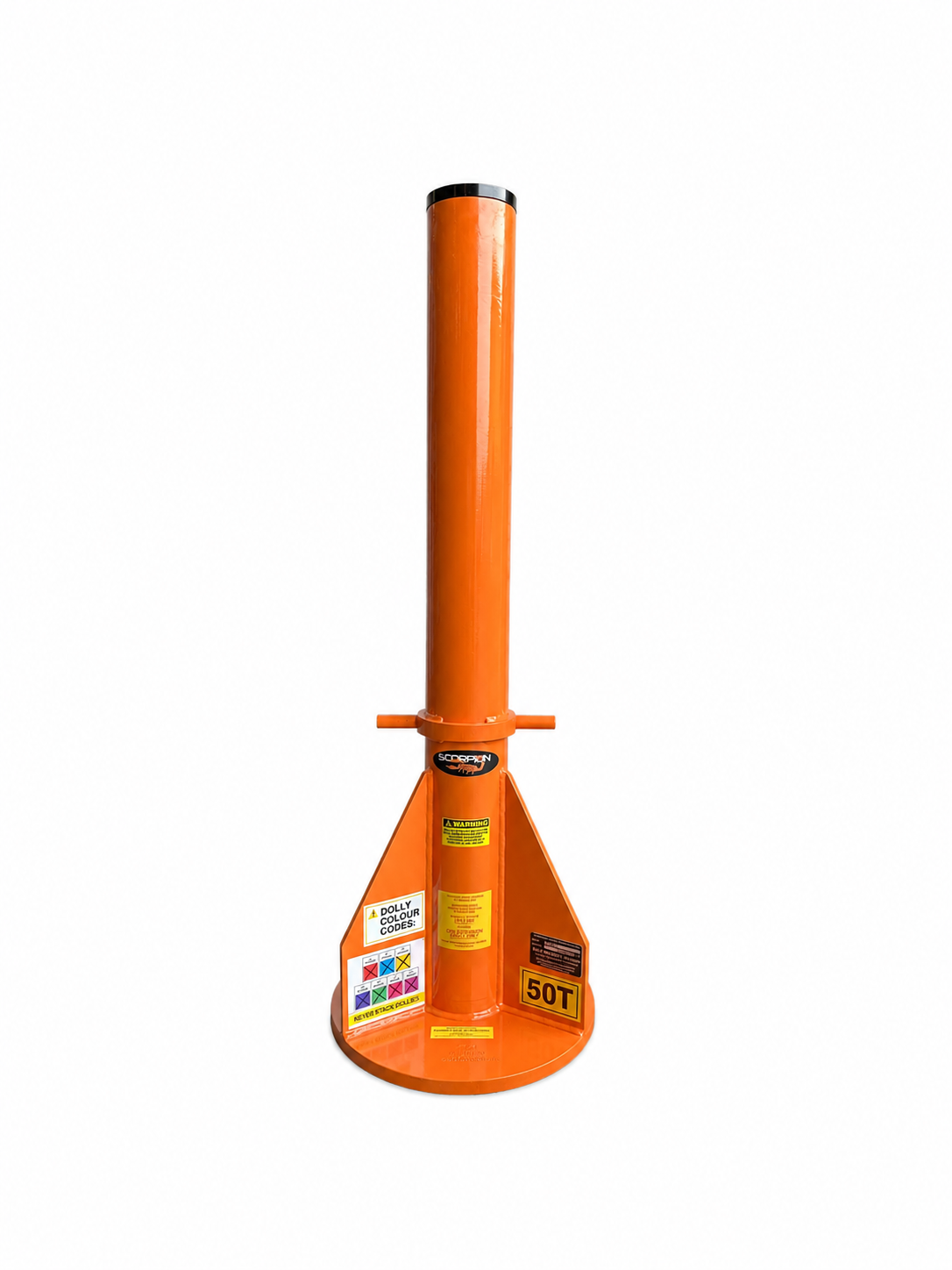

STT50-54
The Scorpion STT50 Series of fixed height floor stands are an ultra-sturdy, durable, easy to move and easy to use floor stand system, which are offered in a variety of starting heights, and that can have a range of extensions dollies added to them to achieve the optimal height. T…he STT50-54 is a fixed height stand with a nominal height of 1371mm. Additional height increments can be achieved by adding extension dollies to this stand, and with the addition of the longest compliant extension in the 50T range, a nominal maximum height of 1437 mm can be achieved. Ideal for use with larger sized surface machines, they offer a highly stable design with which to work under. In addition to the extension options, the STT50 series also offers a variety of specialty load caps to ensure you have the correct engagement surface for every mining and earthmoving application. The STT50-54 stands can be easily moved with the use of the HT50 hand truck, and extension dollies and load caps can be neatly stored in the Dolly Rack option.
| Model | STT50-54 |
| Capacity – Metric Tonnes (Short Tonnes) | 50 (55) |
| Stand Height mm (inches) | 1371 (54) |
| Max Stand Height mm (inches) | 1473 (58) |
No resource documents for this product
Capacity – Metric Tonnes / (Short Tonnes)
102 (4)
Height mm (inches)
50 (55)
Capacity – Metric Tonnes / (Short Tonnes)
50 (55)
Height mm (inches)
19 (.3/4)
Capacity – Metric Tonnes / (Short Tonnes)
76 (3)
Height mm (inches)
50 (55)
Capacity – Metric Tonnes / (Short Tonnes)
50 (55)
Height mm (inches)
59 (2.3/8)
Capacity – Metric Tonnes / (Short Tonnes)
50 (55)
Height mm (inches)
39 (1.1/2)
Capacity – Metric Tonnes / (Short Tonnes)
50 (55)
Height mm (inches)
59 (2.3/8)
Capacity – Metric Tonnes / (Short Tonnes)
50 (55)
Height mm (inches)
350 (13.3/4)
