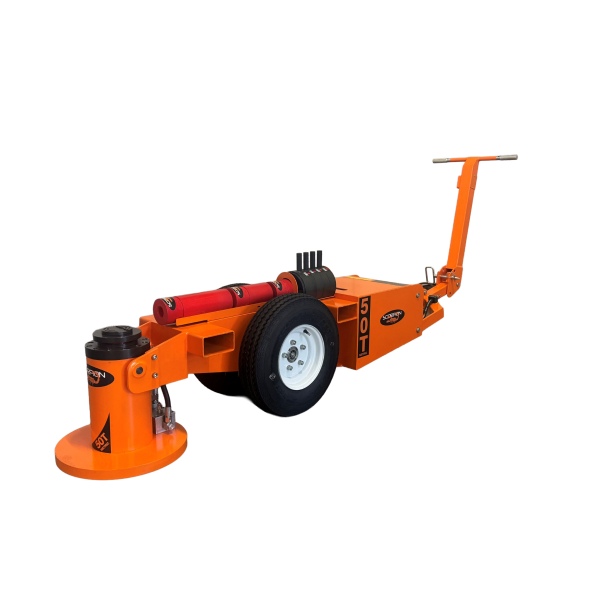

MEJ50-9

MEJ Series

Capacity – Metric Tonnes (Short Tonnes)
50 (55)
Closed Height mm (inches)
422 (16.58/)
Stroke mm (inches)
237 (9.3/8)
Extended Height with chocks mm (inches)
625 (25.5/8)

MEJ50-14

MEJ Series

Capacity – Metric Tonnes (Short Tonnes)
50 (55)
Closed Height mm (inches)
546 (21.1/2)
Stroke mm (inches)
350 (13.3/4)
Extended Height with chocks mm (inches)
876 (34.1/2)

MEJ50-18

Capacity – Metric Tonnes (Short Tonnes)
50 (55)
Closed Height mm (inches)
654 (25.3/4)
Stroke mm (inches)
457 (18)
Extended Height with chocks mm (inches)
1086 (42.3/4)

MLJ100-380

MLJ Series

Capacity – Metric Tonnes (Short Tonnes)
100 (110)
Closed Height mm (inches)
644 (25.38)
Stroke mm (inches)
381 (15)
Extended Height with chocks mm (inches)
1000 (39.3/8)

MLJ100-660

MLJ Series

Capacity – Metric Tonnes (Short Tonnes)
100 (110)
Closed Height mm (inches)
925 (36.7/16)
Stroke mm (inches)
660 (26)
Extended Height with chocks mm (inches)
1560 (61.7/16)

MLJ150-400

MLJ Series

Capacity – Metric Tonnes (Short Tonnes)
150 (165)
Closed Height mm (inches)
698 (27.1/2)
Stroke mm (inches)
400 (16)
Extended Height with chocks mm (inches)
1088 (42.7/8)

MLJ150-600

MLJ Series

Capacity – Metric Tonnes (Short Tonnes)
150 (165)
Closed Height mm (inches)
865 (34)
Stroke mm (inches)
600 (24)
Extended Height with chocks mm (inches)
1452 (57.1/8)

MLJ200-400

MLJ Series

Capacity – Metric Tonnes (Short Tonnes)
200 (220)
Closed Height mm (inches)
698 (27.1/2)
Stroke mm (inches)
400 (16)
Extended Height with chocks mm (inches)
1088 (42.7/8)

MLJ200-600

MLJ Series

Capacity – Metric Tonnes (Short Tonnes)
200 (220)
Closed Height mm (inches)
865 (34)
Stroke mm (inches)
600 (24)
Extended Height with chocks mm (inches)
1452 (57.1/8)

HEJ100L

HEJ Series

Capacity – Metric Tonnes (Short Tonnes)
100 (110)
Closed Height mm (inches)
467 (18.3/8)
Stroke mm (inches)
267 (10.1/2)

HEJ100-15

HEJ Series

Capacity – Metric Tonnes (Short Tonnes)
100 (110)
Closed Height mm (inches)
646 (25.1/2)
Stroke mm (inches)
382 (15)

HEJ150-16

HEJ Series

Capacity – Metric Tonnes (Short Tonnes)
150 (165)
Closed Height mm (inches)
665 (26./18)
Stroke mm (inches)
400 (16)

MEJ50-25

MEJ Series

Capacity – Metric Tonnes (Short Tonnes)
50 / 25 (27.1/2)
Closed Height mm (inches)
422 (16.58/)
Stroke mm (inches)
232 (9.1/8)
Stroke (2nd) mm (inches)
196 (7.3/4)

HEJ100-50L

HEJ Series

Capacity – Metric Tonnes (Short Tonnes)
100/50 (110/55)
Closed Height mm (inches)
473 (18.5/8)
Stroke (1st) mm (inches)
231 (9.1/8)
Stroke (2nd) mm (inches)
175 (6.7/8)

HEJ100-50

HEJ Series

Capacity – Metric Tonnes (Short Tonnes)
100/50 (110/55)
Closed Height mm (inches)
590 (23.1/4)
Stroke (1st) mm (inches)
350 (13.3/4)
Stroke (2nd) mm (inches)
292 (11.1/2)

HEJ150-80

HEJ Series

Capacity – Metric Tonnes (Short Tonnes)
150/80 (165/88)
Closed Height mm (inches)
590 (23.1/4)
Stroke (1st) mm (inches)
350 (13.3/4)
Stroke (2nd) mm (inches)
292 (11.1/2)

ELP25-5

ELP Series

Capacity – Metric Tonnes (Short Tonnes)
25 (Final Stage) / 27.5 (Final Stage)
Closed Height mm (inches)
256 (10.5/64)

ELP50-4

ELP Series

Capacity – Metric Tonnes (Short Tonnes)
50 (Final Stage) / 55 (Final Stage)
Closed Height mm (inches)
250 (9.27/32)
